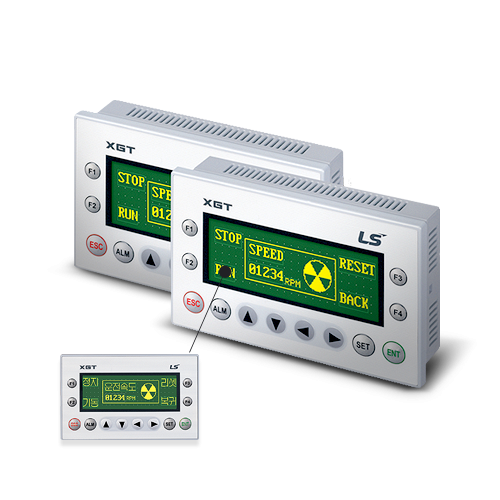

Minimum-sized XGT Panel XP10 Using full-featured GUI programming tool of XGT panel, any user can configure a system easily. LSIS’s know-how reinforces your cost-competitiveness with economic HMI. And its various functions and strong reliability can realize system operation at its maximum.
► Screen : 192×64 Graphic STN LCD
► System RAM : 1000 words
► Flash memory : Program/Parameter back up
► Communication : Half-duplex comm.
-Baud rate : 1200~115200 bps
-Master/slave setting available
-RS-232C/RS-485 2 CH separate to use
► Power reguirements
-24 V input or 5 V direct input by LS PLC
► Various fuction key
-ESC, ALM, SET, ENT, F1~F4, Arrow keys
► Panel Editor
-Easy programming and HW setting
| Item | Specification | References | ||
|---|---|---|---|---|
| XP10BKA/DC | XP10BK/DC | |||
| Input voltage | 5VDC | DC 4.9 ~ 5.1 (RS-232C port) | 3 | |
| 24VDC | DC 21.6 ~ 26.4 (DC Input connector) | |||
| Consumption current | Less than 200mA | |||
| Display | LED back-light (192×64 Dots) | |||
| Communication interface | RS-232C, RS-422/485 | Can be used independently | ||
| Flash memory | 256K bytes | |||
| Language | Default English, Can be swithed to Korean/Chinese/Russian | |||
| RTC | None | Supports | ||
| Download specification | 115,200 bps | |||
| Keys | 12 Keys (F1~F4, ESC, ALM, ▲,▼,◀,▶, SET, ENT) | |||
| System memory | System area | S000 ~ S899 (900Word) | Latch area setting available for XP10BK/DC type | |
| System flag | S900 ~ S999 (100Word) | |||
