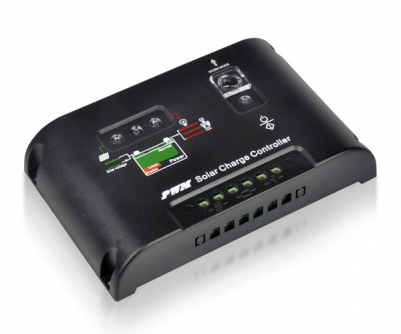

12/24v auto, solar charge controller

Availability: In Stock

Availability: In Stock

Availability: In Stock

Availability: In Stock

Availability: Unavailable



Model

DCT1205

DCT1210

DCT1215

DCT1220

DCT1230

DCT1240

DCT4820

DCT4830

DCT4840

Battery Voltage

12V /24V Auto

12V /24V Auto

48V

Charge Current

5A

10A

15A

20A

30A

40A

20A

30A

40A

Discharge Current

5A

10A

15A

20A

30A

40A

20A

30A

40A

Max Solar Input Power

60/120W

120/240W

180/360W

240/480W

360/720W

480/960W

960W

1440W

1920W

Max Solar Voltage

< 50V

< 50V

< 100V

Float Charge

13.8/27.6V

13.8 / 27.6V

55.2V

Load Disconnect

11.2/22.4V

11.2/ 22.4V

44.8V

Load Reconnect

12.6/ 25.2V

12.6 / 25.2V

50.4V

Self-Consumption

< 15mA

Overload Protection

Shut down after 60s in case of 130% load;
Shut down after 5s in case of 160% load ;
Short circuit: immediate shut down

Charging Mode

PWM (Pulse Width Modulation)

Opertating Temperature

-35°C to +60°C (full load)

Protection Class

IP20

Weight

0.21kg

0.21kg

0.21kg

0.21kg

0.263

0.263

0.266

0.27

0.27

Dimension

139*100*45 mm

143*90*35mm

Safety Standard

ICE62109-1

ICE62109-1
