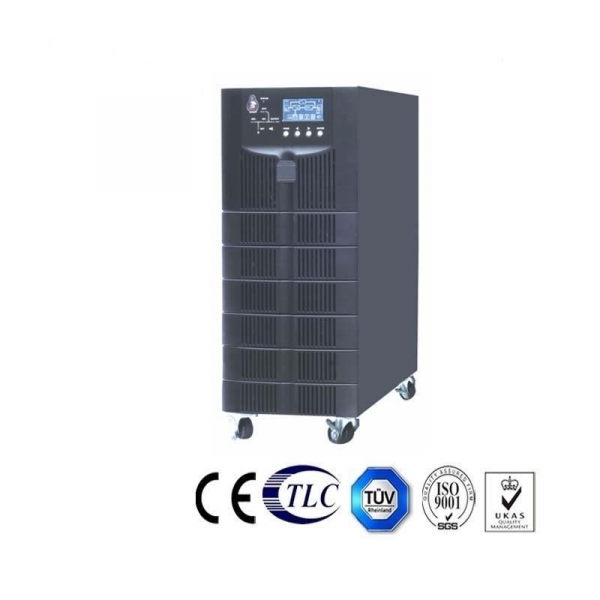

NMS 6KVA External/Internal Battery Single Phase Online UPS

NMS series is online double-conversion UPS with full DSP control technology, with high input and output power factor.

Availability: In Stock

Availability: In Stock

Availability: Unavailable

* Wide range of input voltage while input PF>99%
* Output PF of 0.9, more powerful load capability
* Full protection of overvoltage, short circuit and over temperature
* Abundant interface:RS232,USB, SNMP, Intelligent Card
* LCD/LED display, monitoring all the operations status
* Auto fan speed adjust



* Capacity: 6KVA

* Input Voltage Range: 50%-125%(220VAC/230VAC/240VAC)

* Input Power Factor: ≥0.99

* Input Frequency: 40Hz~70Hz

* Output Power Factor: 0.9

* Output Voltage: 220V/230V/240V

* Efficiency: 93.0%

* Battery Voltage: 192VDC / 7.2Ah

* Max Charging Current: 5A for External type, 1A for Internal type.

* W*D*H(mm): 250*504*480 for External , 250*562*650 for Internal

* Weight(Kg): 18 for External type , 59 for Internal type
