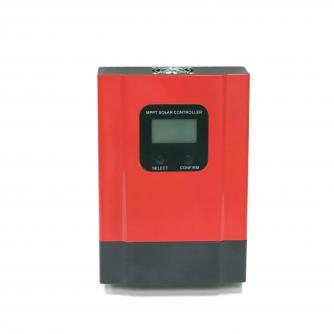

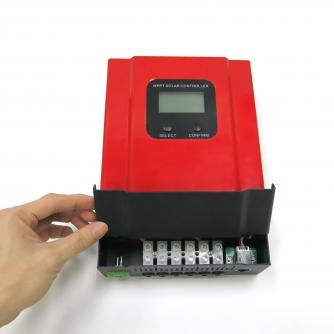

12v/24v/48vauto,40A MPPTController

Availability: In Stock

Features:
1.High efficiency MPPT control algorithm, MPPT efficiency ≥99.5%,
  whole Machine conversion efficiency upto 98%;
 2.Charge mode: three stages (fast charge, constant charge, floating charge),
   improve boost voltage charge(activate the battery performance), it prolongs
  service life of the batteries;
3.Discharge mode: ON/OFF mode, PV voltage control mode, Dual Time control
    mode, PV&Time control mode;
4.Customers can choose battery types: (Flooded, Sealed lead acid, Gel
   battery) charging, Other types of the batteries can also be defined;
5.Most information could be provide by LCD like: System type, PV input voltage,
  PV input current, Day/Month/Total generated energy, battery type, battery
   voltage, charging current, charging power, Load current, Load power and so on;
6.RS485 communication, we can offer communication protocol also,
   it’s convenient for user’s integration management.
7. CE, RoHS, FCC certifications approved. We can help clients to approve
   other certifications.



DI-MPPT-12V/24V/36V/48V-series

20A

30A

40A

Charge Mode

MPPT(Maximum Power Point Tracking)

MPPT efficiency

≥99.5%

System Type

DC12V/24V/36V/48V

Automatic recognition

Input Characteristic

PV Max. Input voltage (VOC)

12V/24V/36V/48V

DC130V

 system

Start charging voltage point

12V/24V/36V/48V

Higher than battery voltage 3V

 system

Low input voltage protection point

12V/24V/36V/48V

Higher than current battery voltage 1V

system

Over voltage

12V/24V/36V/48V system

DC130V

protection point

Rated PV input power

12V system

260W

390W

520W

24V system

520W

780W

1040W

36V system

780W

1170W

1560W

48V system

1040W

1560W

2080W

Charge Characteristic

Charge mode

MPPT(Maximum Power Point Tracking)

Charge method

3-Stage: constant current(fast charging), constant voltage, floating charge

Selectable Battery Types

Flooded, Sealed lead acid, Gel battery

(Other types of the batteries also can be defined)

Rated charge current

20A

30A

40A

Load Discharge Characteristic

           Load voltage

Based on battery voltage

Load rated current

20A

30A

40A

Load control mode

Time control mode, PV&Time control mode,

On mode, Off mode, PV voltage control mode

Display/Communication

LCD display/ RS485 to USB(PC software optional), Meter, WiFi modular(APP)

System type, PV type, PV voltage, Charge voltage, charge current, charge power, temperature etc.

Other Parameters

Protection

Yes

Thermal methods

Products Size DxWxH(mm)

240*168*66

Packing Size DxWxH(mm)

Net Weight (kg)

2.3

Gross Weight (kg)

Type of Mechanical Protection

IP25
