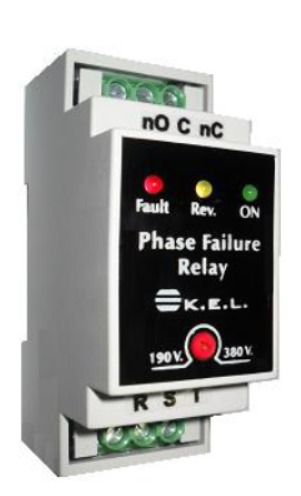

Description
- Three phase motor protection
- Monitoring for phase failure, under voltage,
phase sequence and asymmetry
- For dual supply voltage either 380V or 190V
- Modular housing suitable for mounting on
35mm DIN rail (EN 50022)
User interface
Rotate with a screwdriver in order to setup your
phase monitoring relay :
Potentiometer : power supply voltage of the 3 phase
The status of the LEDs is in this form :
o On : indicate normal conditions
o Rev. : indicate that there is a phase reversal
o Fault : indicate phase failure or asymmetry
