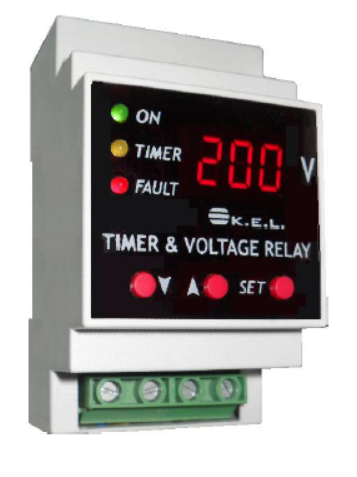

TVR+ Voltmeter RELAY Modular

Availability: In Stock

Description
- Single phase motor protection
- Line monitoring for under voltage and overvoltage
- True RMS voltage measurement
- Adjustable time delay by front keypad
- Wide voltage range and control
- Modular housing suitable for mounting on
35mm DIN rail (EN 50022)
User interface
 Press on the Set button to access the setup menu
Use the ▲ & ▼ buttons to scroll menu list :
H L T : High Limit Voltage
L L T : Low Limit Voltage
T d L : Time Delay On
E n d : Exit menu
To make an adjustment to one of these parameters :
 Press on the Set button in front of the displayed parameter
 Use the ▲ & ▼ buttons to make the adjustment
 Press again on the Set button to exit the selected parameter
The status of the LEDs is in this form :
o On : indicate normal conditions
o Wait : indicate that you are in the delay time waiting
o Fault : indicate that the voltage is below or above the values set
