  4. Embedded Controller with Ethernet port, ROM-DOS, 1*RS232, 1*RS485, 512 k flash, 512 k SRAM, RTC, Vircom software

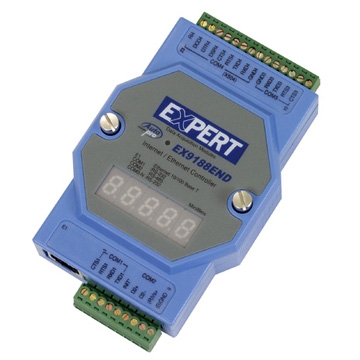

Embedded Controller with Ethernet port, ROM-DOS, 1*RS232, 1*RS485, 512 k flash, 512 k SRAM, RTC, Vircom software

Availability: In Stock

Key Specifications/Special Features:

  • EX9188E2D Support RS232*1, RS485*1
  • Ethernet port for TCP/IP features TCP, UDP, IP, ICMP, ARP, RARP
  • COM1 Can be used to download program and can be RS232 port
  • Dual Watchdog support for system recovery
  • CPU 80188, 40MHZ < >SRAM 256KB FLASH ROM 512KB EEPROM 2KB EMBEDDED OS RomDos(Datalight)Optional: 512KB SRAM, RTC (EX9188E2D-512)



    What is EViSP?



    The EViSP creates a bridge between the host PC and 9188E via TCP/IP protocol. By using EViSP, the host PC can treats the COM port of 9188E as its own internal COM port so that the application programs can simply control the COM port of 9188E without handling the network (TCP/IP) layer.
