ExpertDAQ Relay module communicate via RS485 and are available with Modbus RTU. Within one RS485-network up to 256 modules may be controlled. Without a RS485 Repeater the maximum cable length is 1200m. The RS485 Relay module are sturdy, power saving and easy to use.

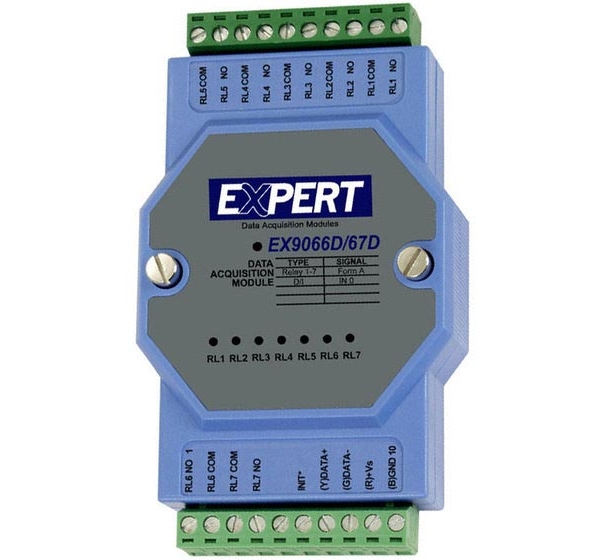

The EX9067D has 7 Form A Output which are capable of carrying currents up to 1A at 24VDC or 0,5A at 120VAC. The EX9067D has a LED-display for each channel and short operating time. The EX9067D was developed for use in a wide temperature range.

Features:



  • 7 relay Type A output channels
  • maximum current 1A at 24VDC or 0,5A at 120VAC
  • Digital Level 0: <+1V - Digital Level 1: 4 - 30V
  • lifetime at least 10^5 operating cycles
  • LED-display for each channel
  • extended temperature range
  • In- and Output galvanically isolated
  • output as RS485-interface
  • manual configuration or with supplied Software
  • power supply 10 - 30VDC
  • Hard- and Software Watchdog
