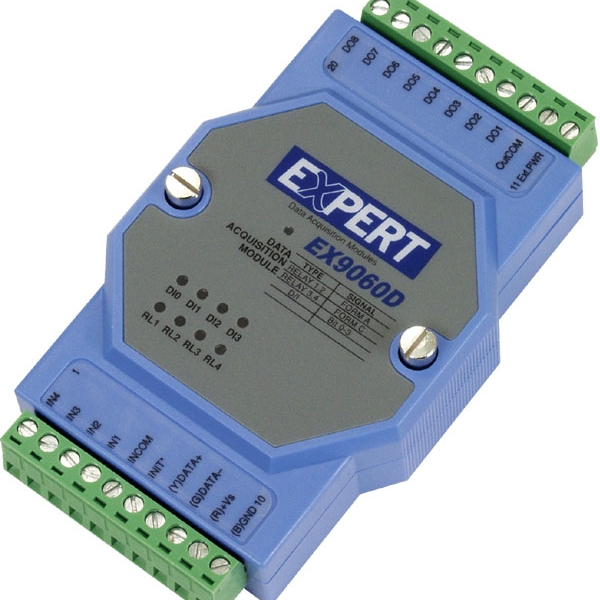

Modbus RTU 4·relay out, 4 digital in

Availability: In Stock

ExpertDAQ Relay module communicate via RS485 and are available with Modbus RTU. Within one RS485-network up to 256 modules may be controlled. Without a RS485 Repeater the maximum cable length is 1200m. The RS485 Relay module are sturdy, power saving and easy to use.

The EX9060D-M has 2 type A and 2 type B relay Output with short operating time. The EX9060D-M has a LED-display for each channel. The RS485 Relay module was developed for use in a wide temperature range and has a long lifetime.

Features:

  • 4 relay output (2xType A 2x Type B)
  • LED-display for each channel
  • short operating time (3ms / 2ms)
  • Digital Level 0: <+1V - Digital Level 1: 4 - 30V
  • lifetime at least 10^5 operating cycles
  • extended temperature range
  • Output as RS485-interface
  • Communicate via Modbus-RTU
  • manual configuration or with supplied Software
  • power supply 10 - 30VDC
  • Hard- and Software Watchdog
