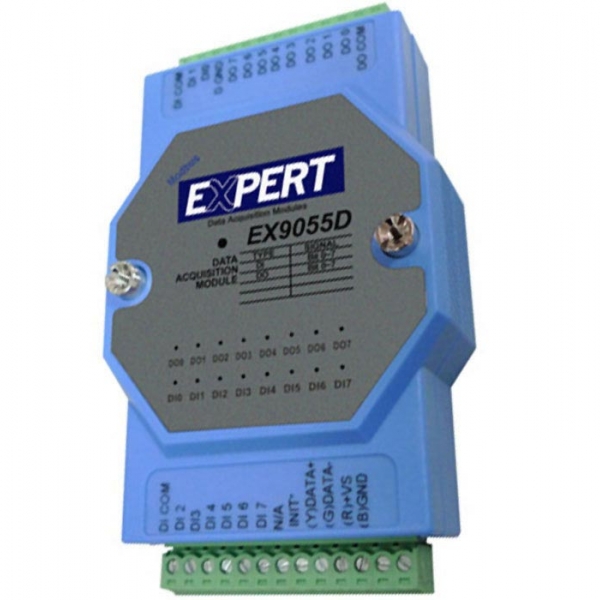

eX-9055 Digital-Modules: 8 Digital Inputs, 8 Digital Outputs.

The eX-9055 industrial modules are the ideal solution for decentral/distributed, PC-controlled acquisition or output of digital signals. They are compact, rugged and have a high noise immunity - ideal for decentral remote-I/O DAQ and control networks. They are DIN-rail or wall-mountable. RS485 is used for simple and inexpensive 2-wire connectivity.

• Industrial modules with RS485, MODbus-RTU or Modbus/TCP, TCP/IP for decentral/remote networking applications.
• 8 digital inputs, 8 digital outputs, various configurations.
• DIN-rail or wall mountable - DIN-rail and wall mounting kit both included.
• Pluggable screw terminals (signal connections, RS485, "INIT").
• "INIT" input: Module reset.
• Extended temperature range (-25...+70°C).
• Galvanic isolation of input to output.
• Configuration: Manual or with software (included).
• Power supply 10...30 VDC.
• Sizen (cm, without connectors) approx. 7 (W) x 10 (L) x 2 (H). Rugged plastiv housing.
• Hard- and software watchdog.
