ExpertDAQ Digital Input module communicate via RS485 and are available with Modbus RTU. Within one RS485-network up to 256 modules may be controlled. Without a RS485 Repeater the maximum cable length is 1200m. The RS485 Digital IO module are sturdy, power saving and easy to use.

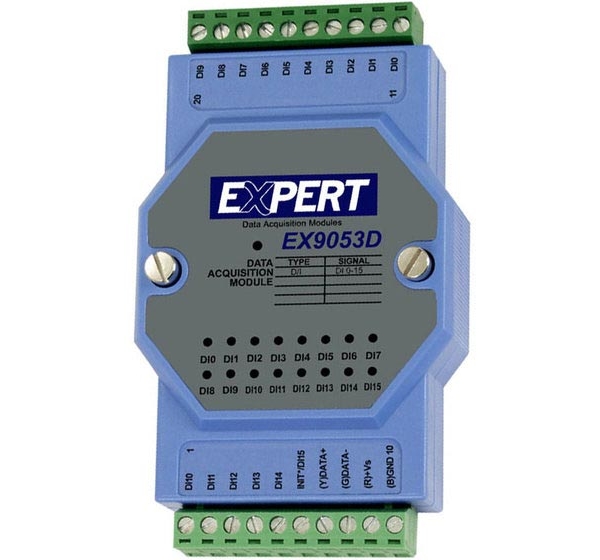

The EX9053D has 16 channels with a low input impedance. The Digital Input RS485 module has a LED-display for each channel and was developed for use in a wide temperature range.

Features:

  • 16 digital inputs
  • LED-display for each channel
  • extended temperature range
  • low input impendance
  • Digital Level 0: <+1V - Digital Level 1: 4-30 V
  • output as RS485-interface
  • manual configuration or with supplied Software
  • power supply 10 - 30VDC
  • Hard- and Software Watchdog
