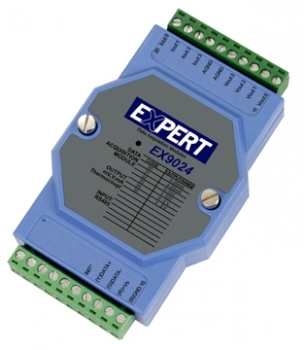

The eX-9024 industrial modules are the ideal solution for decentral/distributed 4-channel analog output (14 bit) with your PC. They are compact, rugged and have a high noise immunity - ideal for decentral remote-I/O DAQ and control networks. They are DIN-rail or wall-mountable. RS485 is used for simple and inexpensive 2-wire connectivity.
- Industrial modules with RS485 for decentral/remote networking applications.
- 4 analog outputs.
- 14 bit D/A conversion, range ±5 V, ±10 V, 0...5 V, 0...10 V and 0...20 mA, 4...20 mA.
- DIN-rail or wall mountable - DIN-rail and wall mounting kit both included.
- Pluggable screw terminals (signal connections, RS485, "INIT").
- "INIT" input: Module reset.
- Extended temperature range (-25...+70°C).
- Galvanic isolation of input to output.
- Configuration: Manual or with software (included).
- Power supply 10...30 VDC.
- Sizen (cm, without connectors) approx. 7 (W) x 10 (L) x 2 (H). Rugged plastiv housing.
- Hard- and software watchdog.
