Modbus RTU 8 thermocouple input

Availability: In Stock

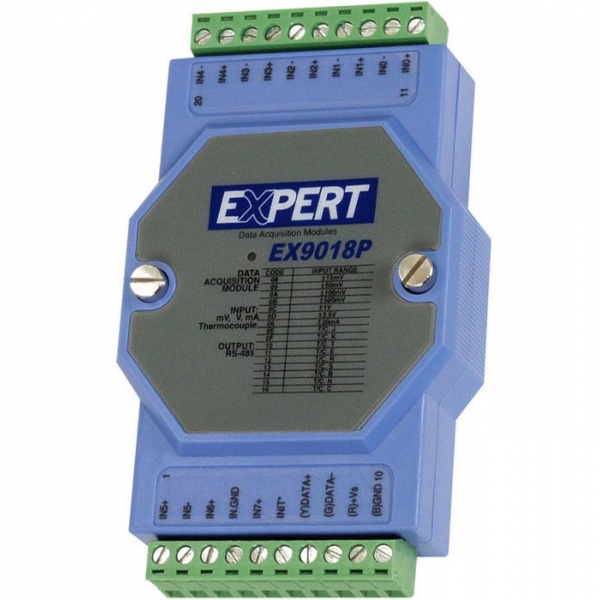

The EX9018BL-M Analog In 16bit module for thermocouple excels at use for temperature measurement with one of the sensors B, C, E, J, K, N, R, S, T or may be used to measure analogue voltages in the measuring ranges ±15mV, ±50mV, ±100mV, ±500mV, ±1V and ±2,5V or currents between ±20mA with a sampling rate of 10 Hz. The Analog In RS485 module has open-loop detection and can be operated in a wide temperature range.

Features:

  • measure voltages in measuring ranges from ±15mV to ±2,5V
  • support all popular thermocouple
  • break-line detection
  • output as RS485 interface
  • Communicate via Modbus-RTU
  • In- and Output galvanically isolated
  • manual configuration or with supplied software
  • power supply 10 - 30VDC
