8 Differential Analog Inputs for RS485

Availability: In Stock

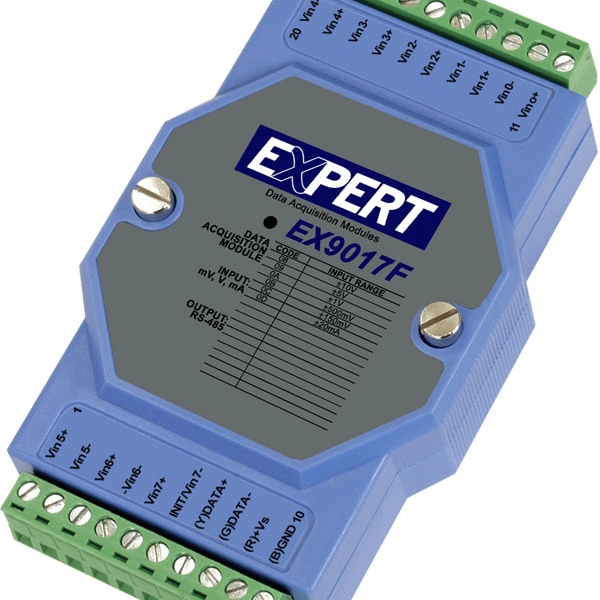

The eX-9017 industrial modules are the ideal solution for decentral/distributed voltage signale acquisition with your PC. They are compact, rugged and have a high noise immunity - ideal for decentral remote-I/O DAQ and control networks. They are DIN-rail or wall-mountable. RS485 is used for simple and inexpensive 2-wire connectivity.

  • Industrial modules with RS485, MODbus-RTU or Modbus/TCP, TCP/IP for decentral/remote networking applications.
  • 8 differential analog voltage inputs.
  • 16 bit/10 Hz or 12 bit/60 Hz A/D conversion.
  • DIN-rail or wall mountable - DIN-rail and wall mounting kit both included.
  • Pluggable screw terminals (signal connections, RS485, "INIT").
  • "INIT" input: Module reset.
  • Extended temperature range (-25...+70°C).
  • Galvanic isolation of input to output.
  • Configuration: Manual or with software (included).
  • Power supply 10...30 VDC.
  • Sizen (cm, without connectors) approx. 7 (W) x 10 (L) x 2 (H). Rugged plastiv housing.
  • Hard- and software watchdog.
