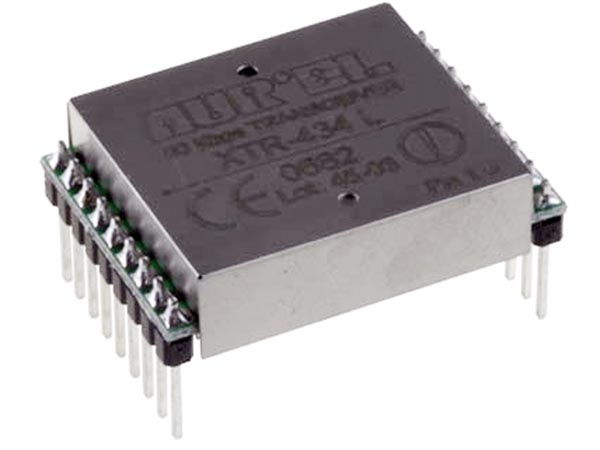

FM radio transceiver modules on 433.92MHz with increased receiver interference immunity and high transmission power. The module is suited for data transmission.
Features
- ultrafast Rx/Tx switch time
- meets EN 300 220 and EN 301 489 European Normative
Specifications
- supply voltage: 5Vdc typ.
- supply current:
- TX on: 28mA typ.
- RX on: 11mA typ.
- RX/TX off: 100nA max.
- Tx-Rx frequency: 433.92MHz
- RF sensitivity: -100dBm
- LF bandwidth: 10 - 50kHz
- TX power: +10dBm
- antenna impedance: 50 ohm
- switch-on time Rx or Tx: 1ms
- operating temperature range: -20°C to +80°C
- dimensions: 33 x 23mm
- baud rate: 50Kbps
