Introduction

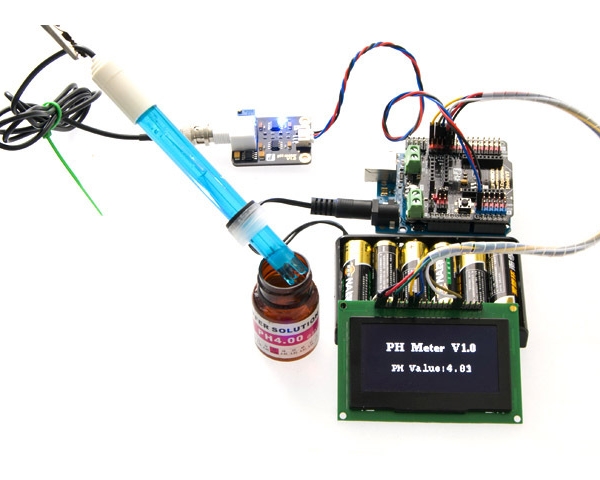

Also in for a low cost, convenient to useopen source pH meter and worry? We launched a specially designed for theArduino1 controller simulation PH meter, has the characteristics of attachmentis simple, convenient and practical. The onboard power light, BNC interface andPH2.0 interface. Use, will received pH sensor onboard BNC interface, theonboard PH2.0 interface connected to the Arduino1 controller simulation, throughthe program control, you can very convenient measuring the pH of the solution.

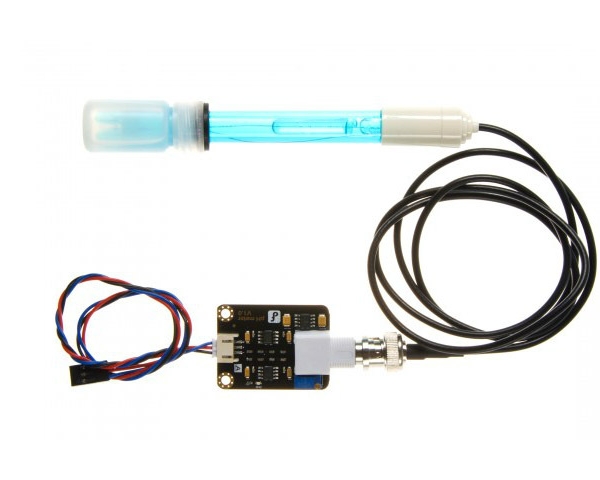

PH sensor electrode using glass electrode and reference electrode togethermolded case not filling type composite electrode, PH meter measuring elementand is used to measure the hydrogen ion activity in aqueous solution, the PHvalue.

The sensor with thick black boxes, enclosed black high quality rubber cushion,full protection components, not only beautiful and generous. Attached to thecore components - PH electrode manual for proper use convenient user'ssecondary development.

Applications

•    Water quality testing

•    Aquaculture

Specifications

•  Module     Power : 5.00V

•  Module     Size : 43mmx32mm

•  Measuring     Range :0-14PH

•  Measuring     Temperature :0-60 deg

•  Accuracy     : ± 0.1pH (25 deg)

•  Response     Time : ≤ 1min

•  pH     Sensor with BNC Connector

•  pH2.0     Interface ( 3 foot patch )

•  Gain     Adjustment Potentiometer

•  Power     Indicator LED
