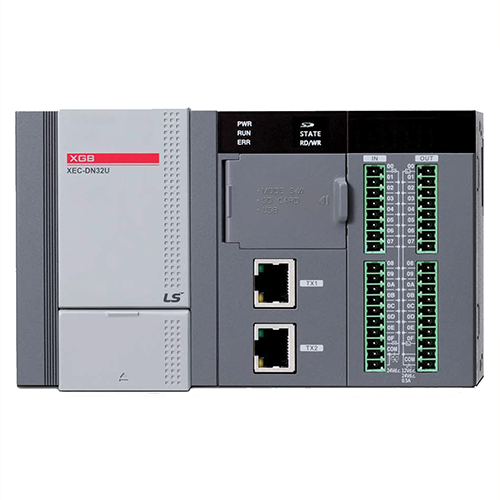

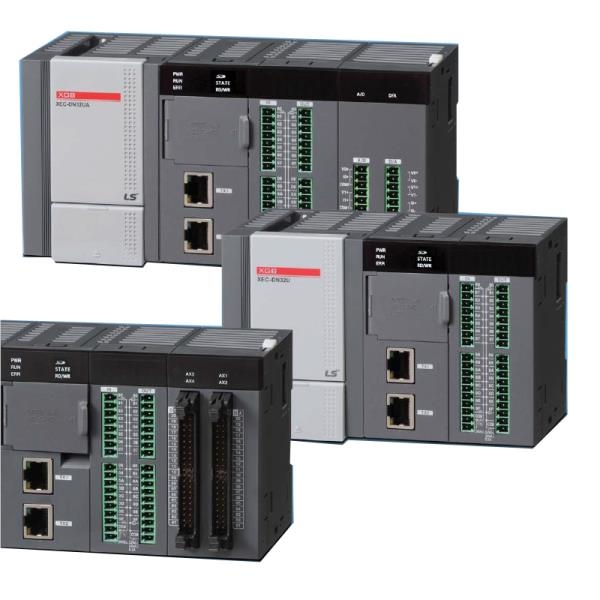

XBC DN(P)32U/UA/UP (16 Input / 16 Output) Ultimate Performance Type PLC

16 Input / 16 Output Transistor type (NPN or PNP), with 10 Expansion Stages and ultimate built in functions such as PID, High Speed Counter, Ethernet, Web Server, Datalog, 2 channel Communication (RS-232/RS-485). 4 axis Positioning for only "P" type & 4 channel Analog Input/Output for only "A" type.


Email us for Price

Specifications:



► Built-in functions: PID control, High-speed counter (100KHz x 8 channel), Ethernet, Serial RS-232C / RS-485(2 ch), Datalog.

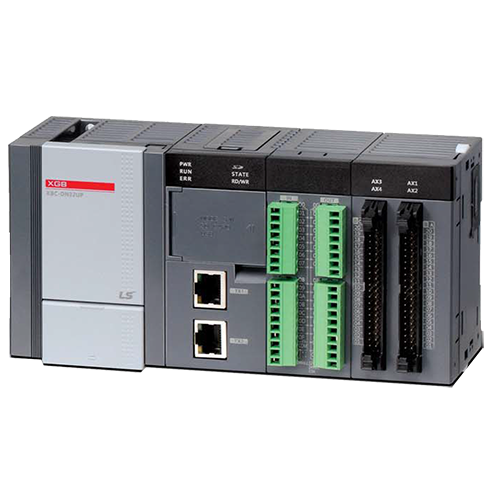

  • 4 Axis Positioning: for only XBC DR28UP

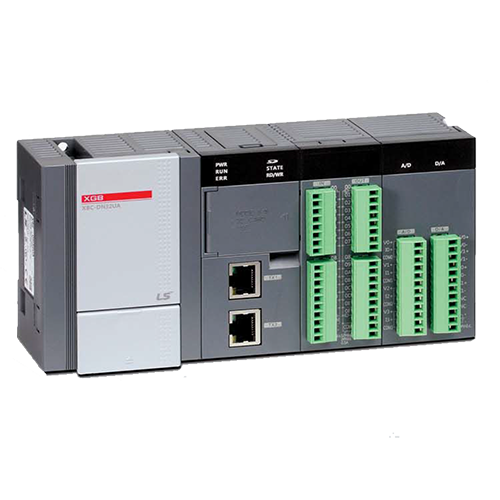

  • 4 channel Analog Input/Output: for only XBC DR28UA



► Web Server: Monitering of PLC information & Data through Web browser:

  • (Data Log file download, PLC basic info, Module info, Diagnosis, Device monitering, Flag monitering, Ladder Program Update, etc..).
  • Email service through commercial email (SMTP: Simple Mail Transfer Protocol).
  • Time Synchronisation by setting basic parameters (SNTP: Simple Network Time Protocol).



 Data Log:

  • Easy parameter setup for "General Save", "Trigger Save", "Event Save" without instruction.
  • 16GB of storable operation data.
  • SD memory format, FTP link, Diagnosis, sending E-mail, PLC program upload/download, O/S update.



► Dual Port Ethernet:

  • 2 ports unmanaged Ethernet switch support
  • Cost saving through simple wiring
  • FTP server support (Data logging)

► Programming language: Ladder Diagram, Instruction List, SFC, ST

► Processing speed: 60ns/step

► Max. I /O points (Main + Expansion 10 stages): 352 points

► Program Capacity: 32Kstep

► Input Wiring: supports both Sink & Source type wiring.

► Program port: USB 1 channel, Ethernet

► Retain data at power failure: Latch area setting at basic parameter



Expansion Modules:

 DC Input 8/16/32 Points  XBE-DC08A / XBE-DC16A / XBE-DC32A
 Transistor Output 8/16/32 Sink/Source  XBE-TN08A / XBE-TP08A / XBE-TN16A / XBE-TP16A / XBE-TN32A / XBE-TP32A
 Relay Output 8/16  XBE-RY08A / XBE-RY16A
 DC 8 Input/ Relay 8 Output   XBE-DR16A
 DC 16 Input/ Transistor 16 Output  XBE-DN32A
 Analog Input (Voltage & Current)  XBF-AD04A / XBF-AD04C / XBF-AD08A
 Analog Output (Voltage or Current)  XBF-DV04A / XBF-DV04C / XBF-DC04C / XBF-DC04A
 Analog 2 ch Input/2 ch Output , Voltage & Current  XBF-AH04A
 RTD 4 channels  XBF-RD04A
 Thermocouple 4 channels  XBF-TC04S
 PID Temp Controller 4 channel & 4 Outputs  XBF-TC04TT
 PID Temp Controller 4 channel & 4 Outputs  XBF-TC04RT
 Load Cell Input Module 2 channel  XBF-LD02S
 Positioning Module 2 axis  XBF-PDO2A
 EtherCAT Positioning Module 8 axis  XBF-PN08B
 High Speed Counter (Open Collector or Line Driver)  XBF-HO02A / XGF-HD02A
 Ethernet module (10/100 Base-TX)  XBL-EMTA
 RS-232 module  XBL-C21A
 RS-422/485 module  XBL-C41A
 RAPIEnet module (100Mbps)  XBL- EIMT
 Ethernet /IP (100Mbps)  XBL- EIPT
 Prifibus-DP slave module  XBL-PMEC / XBL-PSEA
 DeviceNet module (125/250/500 Kbps)  XBL-DSEA
 Rnet module 1Mbps(Rnet I/F modules common)  XBL-RMEA
 CANopen module  XBL-CMEA / XBL-CSEA
