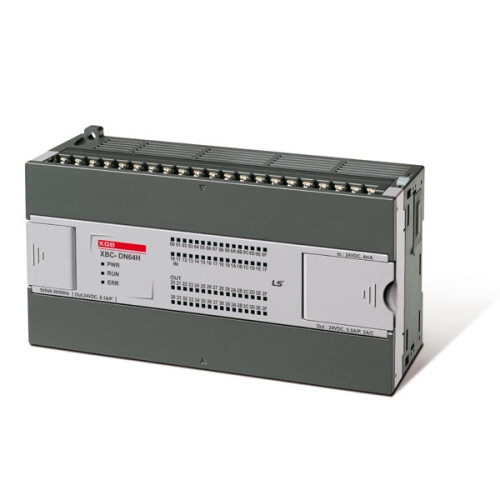

32 Input/32 Output Relay or Transistor (NPN or PNP) type outputs, with 7 Expansion Stages & powerful built in functions such as PID, High Speed Counter, Positioning, RTC, 2 channel communication (RS-232 & RS-485), Pulse Catch, Input Filter & External Interrupt.
Specifications:
► Built-in functions: PID control, High-speed counter, Positioning, RS-232C / RS-485(2 ch), Pulse catch, Input filter, External interrupt, RTC.
► Programming language: Ladder diagram or IEC standard (LD, SFC, ST)
► Processing speed: 83 ns / Step
► Max. I /O points (Main + Expansion 10 stages): 384 points
► Input Wiring: supports both Sink & Source type wiring.
► Program port: USB (Rev 1.1), RS-232C 1 channel (Loader)
► Retain data at power failure: Latch area setting at basic parameter
Expansion Modules:
| DC Input 8/16/32 Points | XBE-DC08A / XBE-DC16A / XBE-DC32A |
| Transistor Output 8/16/32 Sink/Source | XBE-TN08A / XBE-TP08A / XBE-TN16A / XBE-TP16A / XBE-TN32A / XBE-TP32A |
| Relay Output 8/16 | XBE-RY08A / XBE-RY16A |
| DC 8 Input/ Relay 8 Output | XBE-DR16A |
| DC 16 Input/ Transistor 16 Output | XBE-DN32A |
| Analog Input (Voltage & Current) | XBF-AD04A / XBF-AD04C / XBF-AD08A |
| Analog Output (Voltage or Current) | XBF-DV04A / XBF-DV04C / XBF-DC04C / XBF-DC04A |
| Analog 2 ch Input/2 ch Output , Voltage & Current | XBF-AH04A |
| RTD 4 channels | XBF-RD04A |
| Thermocouple 4 channels | XBF-TC04S |
| PID Temp Controller 4 channel & 4 Outputs | XBF-TC04TT |
| PID Temp Controller 4 channel & 4 Outputs | XBF-TC04RT |
| Load Cell Input Module 2 channel | XBF-LD02S |
| Positioning Module 2 axis | XBF-PDO2A |
| EtherCAT Positioning Module 8 axis | XBF-PN08B |
| High Speed Counter (Open Collector or Line Driver) | XBF-HO02A / XGF-HD02A |
| Ethernet module (10/100 Base-TX) | XBL-EMTA |
| RS-232 module | XBL-C21A |
| RS-422/485 module | XBL-C41A |
| RAPIEnet module (100Mbps) | XBL- EIMT |
| Ethernet /IP (100Mbps) | XBL- EIPT |
| Prifibus-DP slave module | XBL-PMEC / XBL-PSEA |
| DeviceNet module (125/250/500 Kbps) | XBL-DSEA |
| Rnet module 1Mbps(Rnet I/F modules common) | XBL-RMEA |
| CANopen module | XBL-CMEA / XBL-CSEA |
