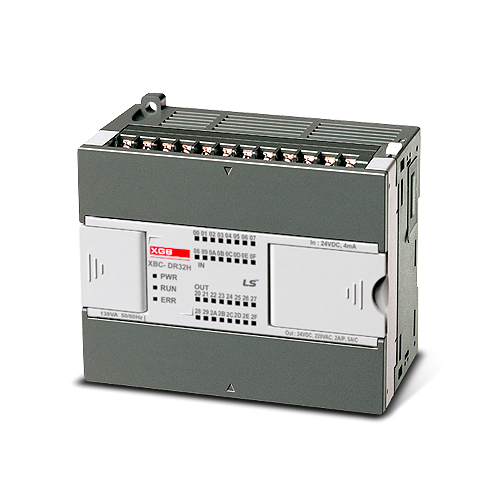

XBC DN/DR/DP32H (16 Input/16 Output) High Performance type PLC

16 Input/16 Output Relay or Transistor (NPN or PNP) type outputs, with 7 Expansion Stages & powerful built in functions such as PID, High Speed Counter, Positioning, RTC, 2 channel communication (RS-232 & RS-485), Pulse Catch, Input Filter & External Interrupt.


Email us for Price

Specifications:

► Built-in functions: PID control, High-speed counter, Positioning, RS-232C / RS-485(2 ch), Pulse catch, Input filter, External interrupt, RTC.

► Programming language: Ladder diagram or IEC standard (LD, SFC, ST)

► Processing speed: 83 ns / Step

► Max. I /O points (Main + Expansion 10 stages): 352 points

► Input Wiring: supports both Sink & Source type wiring.

► Program port: USB (Rev 1.1), RS-232C 1 channel (Loader)

► Retain data at power failure: Latch area setting at basic parameter



Expansion Modules:

 DC Input 8/16/32 Points  XBE-DC08A / XBE-DC16A / XBE-DC32A
 Transistor Output 8/16/32 Sink/Source  XBE-TN08A / XBE-TP08A / XBE-TN16A / XBE-TP16A / XBE-TN32A / XBE-TP32A
 Relay Output 8/16  XBE-RY08A / XBE-RY16A
 DC 8 Input/ Relay 8 Output   XBE-DR16A
 DC 16 Input/ Transistor 16 Output  XBE-DN32A
 Analog Input (Voltage & Current)  XBF-AD04A / XBF-AD04C / XBF-AD08A
 Analog Output (Voltage or Current)  XBF-DV04A / XBF-DV04C / XBF-DC04C / XBF-DC04A
 Analog 2 ch Input/2 ch Output , Voltage & Current  XBF-AH04A
 RTD 4 channels  XBF-RD04A
 Thermocouple 4 channels  XBF-TC04S
 PID Temp Controller 4 channel & 4 Outputs  XBF-TC04TT
 PID Temp Controller 4 channel & 4 Outputs  XBF-TC04RT
 Load Cell Input Module 2 channel  XBF-LD02S
 Positioning Module 2 axis  XBF-PDO2A
 EtherCAT Positioning Module 8 axis  XBF-PN08B
 High Speed Counter (Open Collector or Line Driver)  XBF-HO02A / XGF-HD02A
 Ethernet module (10/100 Base-TX)  XBL-EMTA
 RS-232 module  XBL-C21A
 RS-422/485 module  XBL-C41A
 RAPIEnet module (100Mbps)  XBL- EIMT
 Ethernet /IP (100Mbps)  XBL- EIPT
 Prifibus-DP slave module  XBL-PMEC / XBL-PSEA
 DeviceNet module (125/250/500 Kbps)  XBL-DSEA
 Rnet module 1Mbps(Rnet I/F modules common)  XBL-RMEA
 CANopen module  XBL-CMEA / XBL-CSEA
