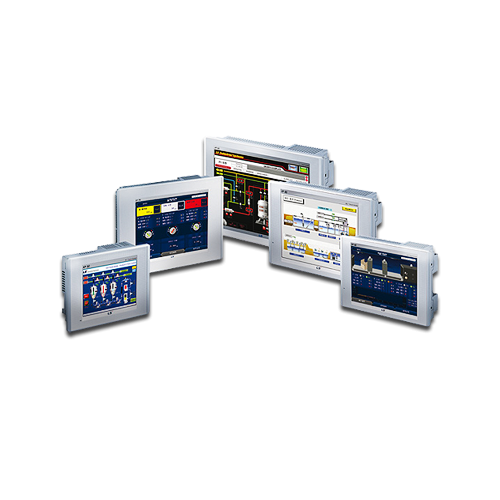

Coomunication interfaces: Ethernet, RS-232C, RS-422/485, USB Host, CF Card slot.
► USB Host
· 2 USB interface channels
· Various access devices can be used using the USB I/F.
· Access to mouse, keyboard, a USB external hard disk, barcode reader and USB hub is possible, Access to mouse, keyboard, a USB external hard disk,barcode reader and USB hub is possible. Continuous upgrades and developments to cope with other drivers are under progress.
► Effective Use of USB Memory
· PLC data can be saved in a CF card or USB memory. If necessary, they are converted into a CSV format to be used to prepare daily and monthly reports.
· When the drawing files using XP-Builder are saved in a CF card or a USB memory and copied to the XGT Panel, they can be executed without being sent via cables.
· When there are several XGT Panels, one CF card or USB memory can be used to copy each XGT panel, allowing a setup.
· A CF card or a USB memory can be used for engine updates and upload/download of drawing files.
General Information
| Item | Description | Standard | |||
|---|---|---|---|---|---|
| Ambient Temperature | 0℃∼+50℃ | ||||
| Storage Temperature | -20℃∼+60℃ | ||||
| Ambient Humidity | 10∼85%RH, without dew condensation | ||||
| Storage Humidity | 10∼85%RH, without dew condensation | ||||
| Vibration Resistance | -20℃∼+60℃ | Counts | |||
| Frequency | Acceleration | Amplitude | 10 times each direction (X, Y and Z) |
IEC 61131-2 | |
| 5≤ f < 9㎐ | - | 3.5mm | |||
| 9 ≤ f ≤ 150㎐ | 9.8m/s2 | - | |||
| Continuous Vibration | |||||
| Frequency | Acceleration | Amplitude | |||
| 5≤ f < 9㎐ | - | 1.75mm | |||
| 9 ≤ f ≤ 150㎐ | 4.9m/s2 | - | |||
| Shock Resistance | Maximum shock acceleration: 147m/s 2 (15g) Authorization time: 11㎳ Pulse waveform: Half-sine wave pulse (3 times each of X,Y and Z) |
IEC 61131-2 | |||
| Noise Resistance | Square wave impulse noise | AC: ±1,500V DC: ±1,000V | LSIS Standards | ||
| Electrostatic discharge | Voltage: 6 kV (Contact discharge) | IEC 61131-2, IEC 61000-4-2 | |||
| Radiated electromagnetic field noise | 27 ~ 500MHz, 10V/m | IEC 61131-2, IEC 61000-4-3 | |||
| Fast transient/Burst noise | Power module: 2 kV, Communication interface: 1kV | IEC 61131-2, IEC 61000-4-4 | |||
| Operating Ambience | Free from corrosive gas and excessive dust | ||||
| Altitude | 2,000m (6,562ft) or below | ||||
| Pollution Degree | 2 or under | ||||
| Cooling Method | Natural air-cooling | ||||
Specifications
| Model Type | XP30-BTE/DC | XP30-BTA/DC | XP30-TTE/DC | XP30-TTA/DC | XP40-TTE/DC | XP40-TTA/DC | XP50-TTA/DC | XP70-TTA/AC XP70-TTA/DC |
XP80-TTA/AC XP80-TTA/DC |
XP90-TTA/AC | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mono | Color | |||||||||||
| Display Element | Mono Blue LCD | TFT Color LCD | ||||||||||
| Screen Size | 14cm (5.7”) | 17.7cm (7”) | 21cm (8.4”) | 26cm (10.4”) | 31cm (12.1”) | 38cm (15” | ||||||
| Resolution | 320×240 | 800×480 | 640×480 | 800×600 | 1024×768 | |||||||
| Color | 8-column Gray Scale | 256 colors | 65,536 colors | 65,536 colors | ||||||||
| Backlight | LED mode | LED mode(can be replaced), Auto On/Off | ||||||||||
| 50,000 hours | 60,000 hours | 30,000 hours | 50,000 hours | 60,000 hours | ||||||||
| Contrast | Adjustable | Fixed | ||||||||||
| Brightness | 230cd/㎡ | 600cd/㎡ | 280cd/㎡ | 480cd/㎡ | 430cd/㎡ | 400cd/㎡ | 450cd/㎡ | |||||
| Viewing Angle |
Up/Down (Degree) |
20/40 | 80/80 | 70/70 | 50/60 | 50/60 | 45/65 | 45/75 | 60/50 | |||
| Left/Right (Degree) |
45/45 | 80/80 | 65/65 | 65/65 | 65/65 | 65/65 | 75/75 | |||||
| Touch Panel | 4-wire system, analogue | Analog resistive | 8-wire system, analogue | |||||||||
| Movement LED | Green: Normal RUN (Monitoring & drawing data download) Red: Error (Communication error & drawing data error) |
|||||||||||
| Memory | Screen Data | 4MB | 10MB | 4MB | 10MB | 4MB | 10MB | 10MB | 20MB | |||
| Backup Data | 128KB | 512KB | 128KB | 512KB | 128KB | 512KB | ||||||
| Ethernet | - | 1ch, 10/100Base-T |
- | 1ch, 10/100Base-T |
- | 1ch, 10/100Base-T |
||||||
| USB Interface | USB Hostx1 | USB Hostx2 | USB Hostx1 | USB Hostx2 | USB Hostx1 | USB Hostx2 | ||||||
| Serial | RS-232C | 2ch(1 port for PC communication) | ||||||||||
| RS-422/485 | 1ch, 422/485 optional mode | |||||||||||
| CF Card Interface | - | CF card (TAPE-1)×1 |
- | CF card (TAPE-1)×1 |
- | CF card (TAPE-1)×1 |
||||||
| AUX Interface | - | Optional | - | Optional | - | Optional | ||||||
| Certification | CE, UL, KC | |||||||||||
| Protection | IP65 (Front Water Proof Structure) | |||||||||||
| Size(W×H×D)mm | 181x140x56.5 | 181x140x66.5 | 181x140x56.5 | 181x140x66.5 | 203.5x153.5x41.5 | 240x174x73 | 317x243x73 | 395x294x73 | ||||
| Panel Cut (W×H)mm | 155.0 x 123.5 | 192 x 138 | 228.5 x 158.5 | 294.5 x 227.5 | 383.5 x 282.5 | |||||||
| Weight (kg) | 0.62 | 0.75 | 0.62 | 0.75 | 2.2 | 2.4 | 1.4 | 2.2 | 2.4 | 3.9 | ||
| Power | Rated Voltage | DC 24V | AC100~220V, DC 24V | AC100~220V | ||||||||
| Permitted Voltage |
AC | - | MIN 85 VAC, MAX 264 VAC | |||||||||
| DC | MIN 19.2 VDC, MAX 28.8 VDC | - | ||||||||||
| Power Consumption (W) |
AC | - | 21.8 | 31.9 | 31.9 | |||||||
| DC | 9.7 | 16.9 | 9.6 | 17.4 | 9.8 | 9.8 | 18.7 | 20.1 | 25.7 | - | ||
