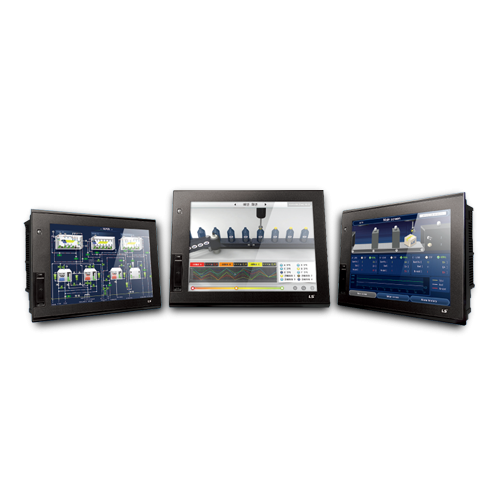

A user-oriented interface, enhanced performance, soft and quick screen switching and quick respond to touch with a various communication interfaces such as SD Card, Audio Out, RS-422/485, RS-232C, Ethernet(10/100 BASE-TX), USB Host, Option Card Connector, VM Module Connector.
► High Speed
High-performance 1GHz CPU is installed to improve the data and screen switching speed, and Windows CE 6.0 Professional OS is adopted to execute NET-based external applications.
► Large Memory
Large device memory is provided to save mass data. 128MB for screen & images, 1MB for alarm & logging.
► Presence Sensor
Sensor detects movement within 1m, to control the backlight, ensuring a longer life of the product.
► More Colorful
High luminance/resolution LCD with an LED backlight and 24 bit colors to express clear and vivid colors of 16,777,216.
► 1 Respective Front USB Host/Device Channel
· An additional USB host channel is installed in the front panel.
· A front USB host is used to connect to a USB memory, mouse and keyboard.
· A front USB device port is used to change the XP-Runtime without opening a control panel or download/upload the drawing file created using XP-Builder.
► Sound Output Function(For all iXP models)
· The sound files (wav, mp3) registered using XP-Builder can be output to speakers connected to HMI.
· An alarm is generated via speakers to warn operators.
· Up to 512 sound files can be saved.
► Function to use SD Cards
iXP supports additional SD memory cards along with previous USB memory to diversify the backup means.
Specifications
| Item | iXP50-TTA/DC | iXP70-TTA/DC iXP70-TTA/AC |
iXP80-TTA/DC iXP80-TTA/AC |
iXP90-TTA/DC iXP90-TTA/AC |
|
|---|---|---|---|---|---|
| Display Type | TFT color LCD | ||||
| Screen Size | 21.3cm (8.4″) | 26.4cm (10.4″) | 30.7cm (12.1″) | 38.1cm (15″) | |
| Display Resolution |
800×600 pixel(SVGA) | 800×600 pixel(SVGA) | 800×600 pixel(SVGA) | 1,024×768 pixel(SVGA) | |
| Color Indication | 16-bit and 24-bit Color (default: 16-bit Color) | ||||
| Indication Degree | Left/Right: 80 deg. Up: 80 deg. Down: 60 deg. |
Left/Right: 80 deg. Up: 60 deg. Down: 80 deg. |
|||
| Backlight | LED Type | ||||
| Backlight Duration | 70,000 hours | 60,000 hours | |||
| Brightness | 500 cd/㎡ | 700 cd/㎡ | 550 cd/㎡ | 800 cd/㎡ | |
| Touch Panel | 4-Line type, analog | ||||
| Sound Output | Magnetic buzzer (85dB) | ||||
| Process | ARM Cortex-A8 Core (32bit RISC), 1GHz | ||||
| Memory | Flash | 512MB(display 128MB) | 1GB(display 128MB) | ||
| Operation RAM | 256MB | 512MB | |||
| Backup RAM | 1MB | ||||
| Backup Data | Date/Hour data, Logging/Alarm/Recipe data and nonvolatile device | ||||
| Batter Duration | Approx. 3 years (Operating ambient temperature of 25°…) | ||||
| Ethernet | 1 channel, 10/100BASE-TX | ||||
| USB Host | 3 channels, USB 2.0 host (mouse, keyboard, printer* and USB memory driver is available) | ||||
| 1 channel, USB 2.0 slave (for download and upload project file) | |||||
| RS-232C | 1 channel | ||||
| RS-422/485 | 1 channel, RS-422/485 mode | ||||
| SD Card | 1 Slot (SDHC) | ||||
| Human Sensor | - | Detection range: side 1-1.5m, front 40-50cm Angle: high/low 100°, left/right 140° (detecting 5-20 micron infrared light) |
|||
| Audio Output | LINE-OUT 1 channel | ||||
| Expansion Module | For communication and I/O option module (available later) | ||||
| VM Module | - | 4 channels video input (available later) | |||
| Multi-language | Up to 12 language simultaneously | ||||
| Animation | GIF format is available | ||||
| Recipe | available | ||||
| Data Logging | available | ||||
| Script Executor | available | ||||
| Certifications | CE, UL(cUL), KC | ||||
| Protection Standard | IP65 | ||||
| Dimension (mm) | 240.5 × 180.0 × 54.4 | 270.5 × 212.5 × 60.0 | 313.0 × 239.0 × 56.0 | 395.0 × 294.0 × 60.0 | |
| Panel Cut (mm) | 228.5 × 158.5 | 259.0 × 201.0 | 301.5 × 227.5 | 383.5 × 282.5 | |
| Rated Voltage | DC24V | DC12/24V(AC 100-240V) | |||
| Power Consumption (W) |
30.8 | 42.3 | 42.3 | 42.3 | |
| Weight (kg) | 1.9 | 2.2 | 2.4 | 3.9 | |
| *SEWOO printer only | |||||
