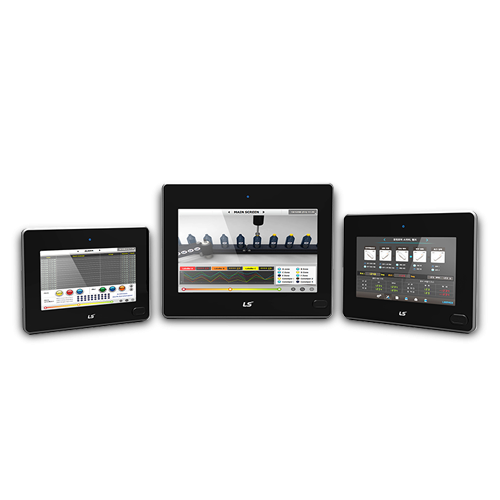

Effective Control and Monitoring Solution with Cost-Efficiency with various communication interfaces such as Ethernet (10/100BASE-TX) , RS-422/485 , RS-232C , RS-485 , USB Host 1ch , USB 2.0 Device & Built-in RTC.
3-Channel Serial Communication
· Simultaneously communicable by RS-485, RS-232C, RS-422/485
· D-Sub 9-pin terminal includes COM1 and COM2
RTC Function
· RTC (Real Time Clock) function operates with a battery even with the power off
· HMI time setting is adjustable quickly using XP-Builder
USB Port in the Front for Devices
With USB port in the front, no need to open the control panel to apply changes to XP-Runtime or download/upload drawing files made in XP-Builder .
General Information
| Item | Description | Standard | |||
|---|---|---|---|---|---|
| Ambient temperature |
0℃∼+50℃ | ||||
| Storage temperature |
-20℃∼+60℃ | ||||
| Ambient humidity |
10∼85%RH, without dew condensation |
||||
| Storage humidity |
10∼85%RH, without dew condensation |
||||
| Vibration resistance |
Occasional Vibration | Counts | |||
| Frequency | Acceleration | Amplitude | 10 times each direction (X, Y and Z) |
IEC 61131-2 | |
| 5≤ f < 9㎐ | - | 3.5mm | |||
| 9≤ f ≤ 150㎐ | 9.8m/s2 | - | |||
| Continuous Vibration | |||||
| Frequency | Acceleration | Amplitude | |||
| 5≤ f < 9㎐ | - | 1.75mm | |||
| 9≤ f ≤ 150㎐ | 4.9m/s2 | - | |||
| Shock resistance |
Maximum shock acceleration: 147㎨(15g) Authorization time: 11㎳ Pulse waveform: Half-sine wave pulse (3 times each of X,Y and Z) |
IEC 61131-2 | |||
| Noise resistance |
Square wave impulse noise | DC: ±1,200V | LSIS Standards | ||
| Electrostatic discharge | ±4kV (Contact discharge) | IEC 61131-2, IEC 61000-4-2 |
|||
| Radiated electromagnetic field noise | 80 ~ 100MHz, 10V/m | IEC 61131-2, IEC 61000-4-3 |
|||
| Fast transient/Burst noise | Power module: 2.4 kV, Communication interface: 1.2kV |
IEC 61131-2, IEC 61000-4-4 |
|||
| Operating ambience |
Free from corrosive gas and excessive dust | ||||
| Altitude | 2,000m (6,562ft) or below | ||||
| Pollution degree |
2 or under | ||||
| Cooling method |
Natural air-cooling | ||||
Specifications
| Item | eXP20-TTA/DC | eXP40-TTE/DC | eXP40-TTA/DC | eXP60-TTA/DC | |
|---|---|---|---|---|---|
| Display Type | TFT color LCD | ||||
| Display Size | 10.9cm (4.3 inch) | 17.7cm (7 inch) | 25.9cm (10.2 inch) | ||
| Resolution | 480 x 272 (WQVGA) | 800 x 480 (WVGA) | |||
| Color | 65,536 colors | ||||
| Display Angle | Left/Right: 60 deg. Up: 40 deg. Down: 60 deg. |
Left/Right: 55 deg. Up: 35 deg. Down: 55 deg. |
|||
| Backlight | LED mode, Auto On/Off | ||||
| Backlight Capacity | 30,000 hr or more | 20,000 hr | |||
| Brightness | e 550 cd/㎡ | 230 cd/㎡ | 200 cd/㎡ | ||
| Touch Panel | 4-wire system, Analogue | ||||
| Sound | Magnetic buzzer (85dB) | ||||
| Processor | ARM9 Core (32bit RISC), 454MHz | ||||
| Memory | Flash | 128MB(Screen 64MB) | |||
| Operation RAM | 128MB | ||||
| Backup RAM | 128KB | ||||
| Backup Type | Date/Time data, Logging/Alarm/Recipe data, non-volatile device | ||||
| Batter Capacity | Around 3 years (Upon operation at 25℃) | ||||
| Ethernet | 1 channel, 10/100BASE-TX | - | 1 channel, 10/100BASE-TX | ||
| USB Port | 1 channels, USB 2.0 host (mouse, keyboard, printer* and USB memory driver is available) | ||||
| 1 channel, USB 2.0 slave (for download and upload project file) | |||||
| RS-232C | 1 channel | ||||
| RS-485 | - | 1 channel | |||
| RS-422/485 | 1 channel, 422/485 Combination | ||||
| Multi-language | Up to 12 language simultaneously | ||||
| Animation | GIF format is available | ||||
| Recipe | available | ||||
| Data logging | available | ||||
| Script executor | available | ||||
| Certification | CE, UL(cUL), KC | ||||
| Protection | IP65 | ||||
| Size (mm) | 128.0x102.0x32.0 | 208.0 x 154.0 x 44.0 | 276.0 x 218.0 x 44.2 | ||
| Panel Cut (mm) | 0 119.0x93.0 | 192.0 x 138.0 | 260.0 x 202.0 | ||
| Power | DC24V | ||||
| Power Consumption (W) |
7.1 | 23.1 | 23.1 | 23.1 | |
| Weight (kg) | 0.3 | 0.59 | 0.60 | 1.0 | |
| *SEWOO printer only | |||||
