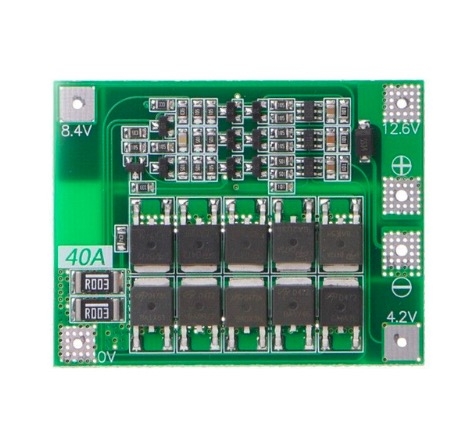

NHS0920 3S 11.1V 12.6V 40A 18650 Li-ion Lithium Battery BMS Protection Board

Features:

·       3S 11.1V 12.6V 40A 18650 lithium battery protection board (comes with recovery function-AUTO Recovery)

·       Application: Nominal voltage of 3.6V, 3.7V lithium battery (including 18650.26650, polymer lithium battery)

·       Continuous discharge current (upper limit): 40A (if the cooling environment is not good, please reduce the load current use)

·       Continuous charge current (upper limit): 20A

·       Suitable for the drills with starting current below 80A, power 135W below

Note:

1) The successful start of the drill requires three 15C-20C power battery, or six 10C-15C power battery (ordinary 18650 can not start the drill !!)

2) strictly according to map wiring 0V, 4.2V, 8.4V, 12.6V, do not deliberately short circuit.

3) When the load of the motor brush is used, try to connect to the non-polar capacitor (withstand voltage

above 25V, capacity 10uF-100uF) to the motor's positive and negative terminals to prevent the reverse

spike from the motor. Break the MOS tube.

4) 3 groups of batteries in series, please ensure that the voltage of each group of batteries, if not the same,

please fill each battery separately and then use in series. The The Discharge test, the voltage drop faster

battery that group is poor battery.

For some of the poor basis of electronic customers to explain: balanced charge is only auxiliary functions,

try to put a good battery and poor battery mixed together! 3 sets of battery capacity/ resistance closer to

the better! (2 good battery +1 Poor battery use effect = 3 poor battery use effect).

Specification:

·       Charging voltage: 12.6V - 13.6V

·       Type: Enhanced Version

·       Size: 5 x 4.2cm/1.97" x 1.65" (Enhanced Version)
