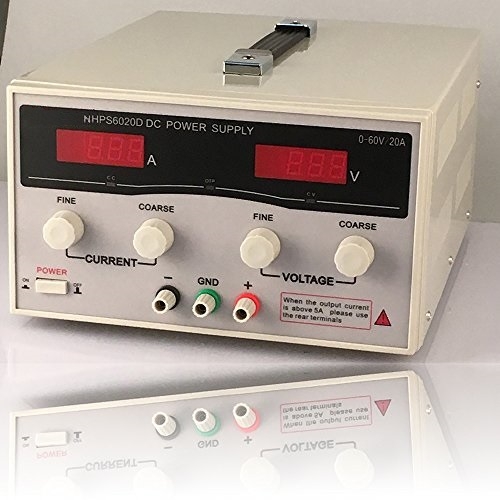

NHPS6020D - Variable DC Switching Power Supply 60V 20A

Variable DC Switching Power Supply 60V 20A

Availability: In Stock

Variable DC Switching Power Supply 60V 20A

  • CC/CV Auto Switching
  • 110V/220V Switchable
  • Over-load protection.
  • Overheat protection.
  • Short circuit protection function.
  • Coarse/ fine tune the Voltage and Current
  • Cooling with temperature-controlled fan
  • Digital LED-display for voltage and current

Input voltage

AC 220V±10%,50Hz(It can be customized

110V / 60hz input)

Output voltage

0 ~ Nominal value

Output current

0 ~ Nominal value

Voltage resolution

0.1V

Current resolution

0.1A

Power effect

CV≤0.3%+10mV

Effect of load

CV≤0.5%+30mV

Ripple and noise

Vp-p≤0.5%+10mV

Voltage display precision

±1%+1digits

Current display precision

±1%+1digits

Net / gross Weight (KG)

5.3kg / 6.5kg

Product / Package Dimension (mm)

260W*160*375L / 340W*240H*415L
