Specification :

Low noise

High torque

Stable operation



Parameter

model step holdingtorque current resis tance inductance detent torque rotor(g-cm2 insulation lead wire
angel(deg) (N.m) /phase(A) /phase(ohms) /phase(mH) (gcm) interia class numbers
35J1834-407 1.8 0.11 0.8 2.5 4.8 120 14 B 4







Dimension:

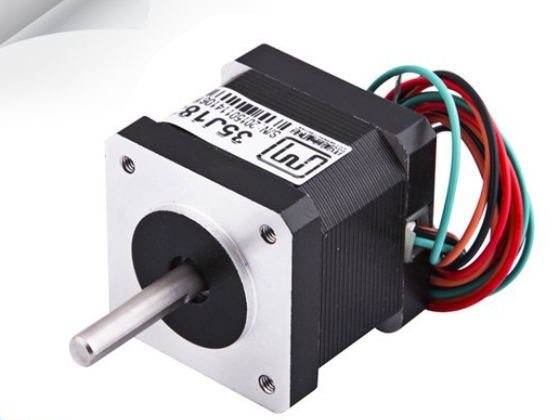

 2 phase hybrid nema 14 stepper motor 35J1834-407

Connection:

2 phase hybrid nema 14 stepper motor 35J1834-407
