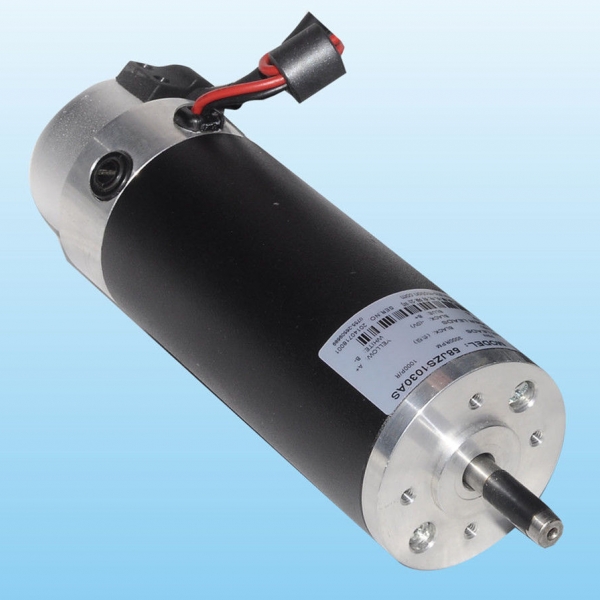

100W 30VDC 3200rpm 0.3N.m Brushed DC Servo Motor
Brushed DC Servo Motor 58JZS1030AS:
1: high performance, smooth, high precision and low noise
2: ultra low cost, far below the AC servo
3: the surrounding interference is much lower than the AC servo
4: optional 1000 or 500 wire encoder, the positioning error can be as small as 1 pulses.
Electrical parameters of DC servo motor
|
58JZS1030AS |
||||||
|
Vt |
voltage |
V |
30 |
|||
|
No |
Idling speed |
RPM |
4100 |
|||
|
Io |
No-load current |
Amps |
0.4 |
|||
|
Tc |
Holding torque |
mN.m |
304 |
|||
|
Nc |
Rated speed |
RPM |
3200 |
|||
|
Ic |
Rated current |
Amps |
4.9 |
|||
|
Po |
Rated power |
Watts |
100 |
|||
|
Tp |
MAX toruqe |
N.m |
1.44 |
|||
|
Ip |
Max current |
Amps |
20 |
|||
|
Ke |
EMF constant |
V/KRMP |
7.3 |
|||
|
Kt |
Torque constant |
mN.m/Amp |
69.9 |
|||
|
Rt |
Terminal resistance |
Ohms |
1.45 |
|||
|
H |
inductance |
mH |
2 |
|||
|
Jm |
Moment of inertia |
Kg.cm² |
0.325 |
|||
|
L |
Motor length |
mm |
127 |
|||
|
W |
weight |
Kg |
1.2 |

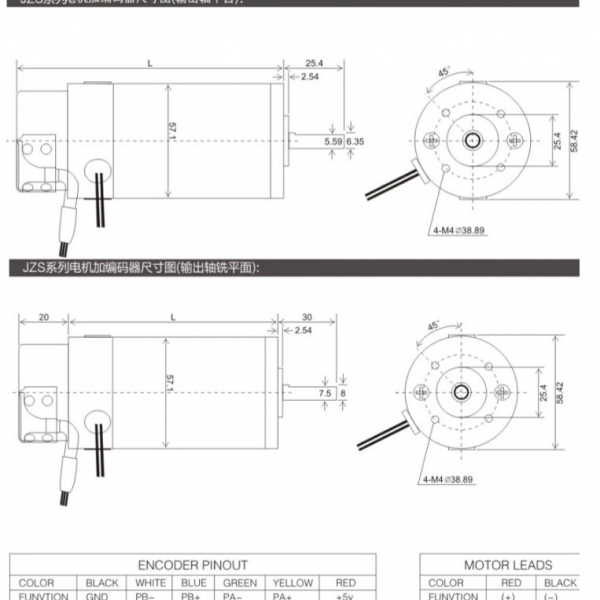

The shaft D=6.35
