Size: 75 x 50 x 35mm / 2.95 x 1.96 x 1.37inch (L x W x H)

Rated maximum output: ± 3A, peak 3.5A

Working voltage: DC 10V-35V

Recommended to use a switching power supply: DC24V power supply

Subdivision: whole step, half-step, step 1/8, 1/16 step, a maximum of 16 Subdivisions.

Feature:

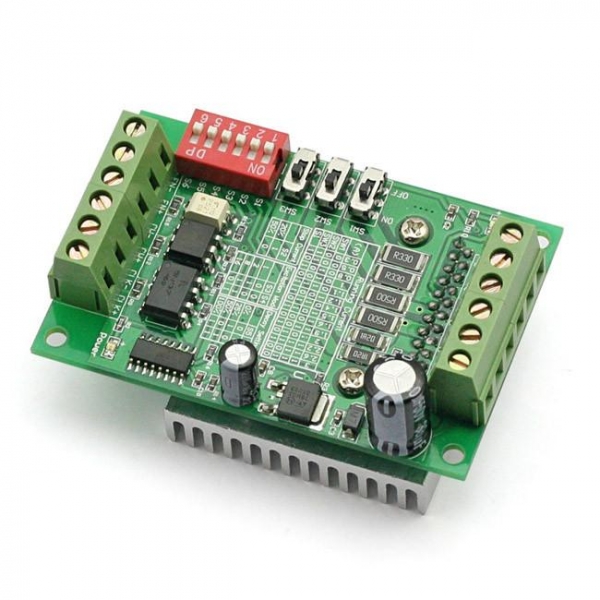

Using the Toshiba TB6560AHQ new original chip with low voltage shutdown, overheating stop and over current protection circuit to ensure optimal performance.

For two-phase within 42, 57 stepping 3A / four-phase / of line four / six-wire stepper motor, and is not suitable for more than 3A stepper motor.

Automatic half current function.

6N137 high-speed optical coupling, guarantee high speed without losing step.

Features similar products:

1. Current grade-by-adjustable to meet your demand for a variety of applications.

2. Semi-automatic flow adjustable.

3. 6N137 high-speed optical coupling, guarantee high speed without losing step.

4. Plate printed setup instructions operation without manual also.

5. Thick teeth radiator, good heat dissipation.
