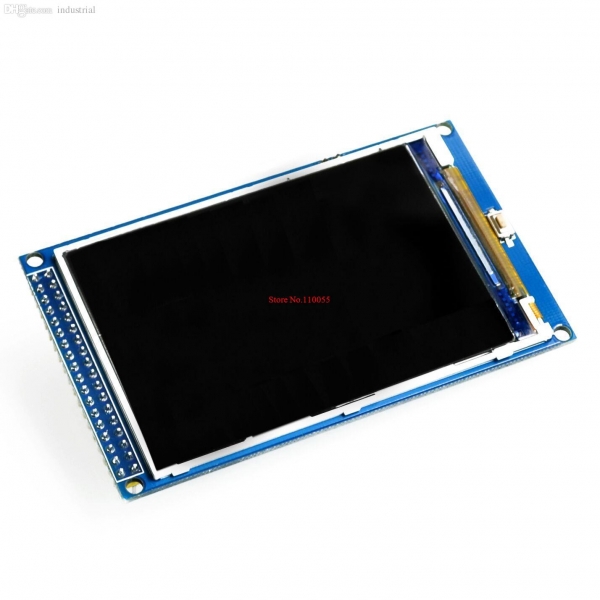

NHR0114 3.2 inch TFT LCD screen module

Availability: In Stock

Description:

3.2 Inch TFT LCD with 262K color 480x 320 resolutions.The controller of this LCD module , it supports 16-wires DataBus interface.Moreover, this module includes the 5V-3.3V power conversion circuit and Level conversion circuit, This Module can Directly inserted into the Arduino Mega2560 Board ,it also includes the SD card socket and SPI FLASH circuit





Feature:

Support Arduino Mega2560 Directly inserted
With Full-angle IPS TFT panel
OnBorad level conversion chip for 5V/3.3V MCU
Compatible with 3.3/5V operation voltage level
Compatible with Arduino-Series development Board.
(Please notice:This Screen is not touch screen)
Provided 12-examples with Arduino ,3-examples with STM32
With SD Card Socket
With SPI FLASH circuit





Parameter:

Display Type: 3.2 inch a-si TFT LCD Module

Glass Type: TFT IPS(Full-Angle)

Display Resolution: 480 X RGB X 320 Pixels

Back light: 6 chip HighLight white LEDs

Control IC: ILI9481

Interface: 16Bit parallel interface

PCB Module size: 89.92mm X 54.25mm

LCD Area(WxHxT): 50.74mm X 78.35mm X 1.88mm

Active Area(WxH): 67.68mm X 45.12mm
