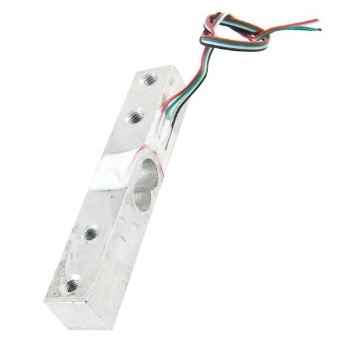

NHS0470 20KG Load Cell Sensor

Availability: In Stock

Specification:

Rated Load: 20Kg

Rated Output: 1.0mV/V±0.15mV/V

Zero Output: ±0.1mV/V

Creep: 0.03%F.S./30min

Input End: Red+(power), Black-(power)

Output End: Green+(signal), White-(signal)

Recommended operating voltage: 3 ~ 12 VDC

Maximum operating voltage: 15 VDC

Input Impedance: 1115±10%Ω

Output Impedance: 1000±10%Ω

Connection: red wire to +E,black wire to -E,Green wire to +S, White wire to -S
