Narinco- PCB Socket For JQX-14FW (14FF-2Z-A1 PCB terminal, PCB or Screw mounting)

‹ ›

14FF Relay Sockets

Applicable for: HF115F/115F-A/115FP & HF14FF/14FW/140FF/141FF.

Availability: In Stock

Availability: Unavailable

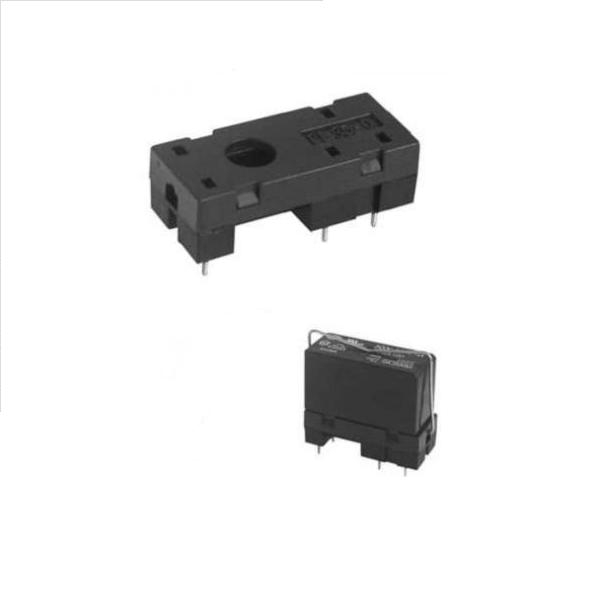

14FF-1Z-A1 (PCB terminal, PCB or screw mounting, For HF14FF & HF141FF)

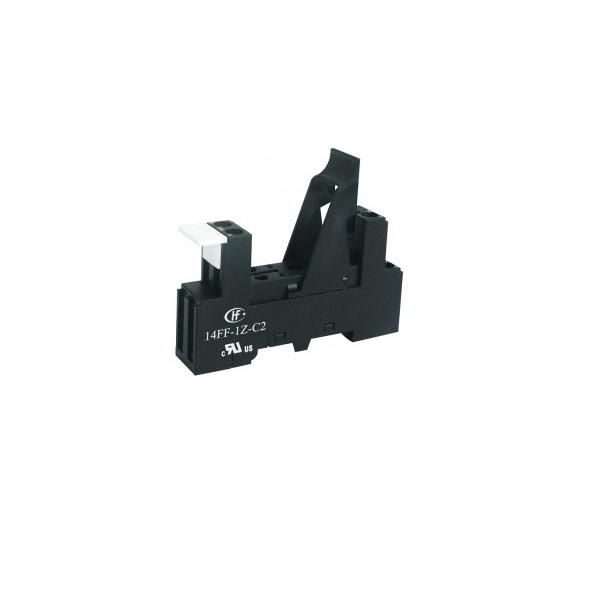

14FF-1Z-C2 (Screw terminal, PCB or Screw mounting, finger protection, for HF14FF & HF141FF)

14FF-1Z-C3 (Screw terminal, DIN rail or Screw mounting, finger protection, for HF14FF & HF141FF)

14FF-2Z-A1 (PCB terminal, PCB or screw mounting, for HF14FW/140FF & HF115F/115F-A/115FP)

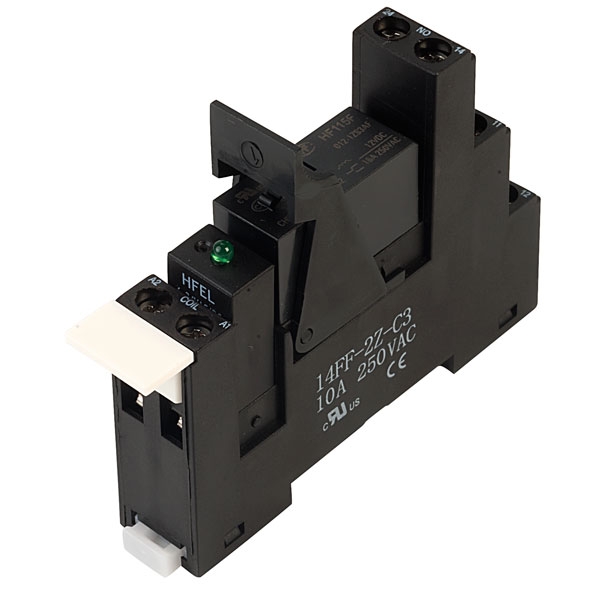

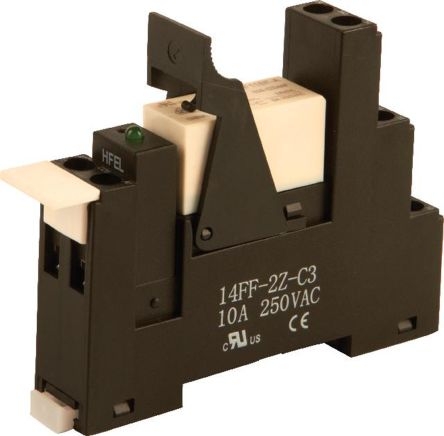

14FF-2Z-C2 (Screw terminal, DIN rail or screw mounting, finger protecion, for HF115F/115F-A/115FP & HF14FW/140FF)

Description

Features:

► The dielectric strength can reach 5000VAC, and the insulation resistance is 1000M-Ohm
► Three mounting types are available, screw mounting & DIN Rail mounting
► Finger protection device available
► Many kinds of plug-in modules are available, with the function of energizing indication and wiring protection
► Components available: metalic retainer, plug-in modules
► Applicable relay types: HF115F/115FA,/115FP, HF14FF/14FW/140FF/141FF
