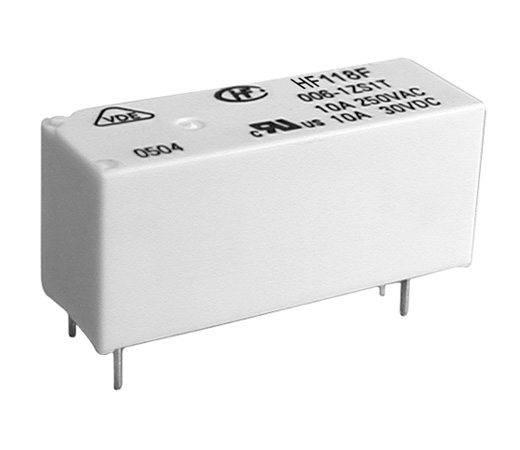

Narinco- HF118F (5/12/24VDC, 10A) Miniature High Power Relay

‹ ›

HF118F (5/12/24VDC, 10A) Miniature High Power Relay

Availability: In Stock

Availability: Unavailable

HF118F/005-1ZS1T (5VDC, 1 Pole, 8A, 3.2mm, Form C contact)

HF118F/05-1Z-S-3-G (5VDC, 1 Pole, 10A, 3.2mm, Form C contact)

HF118F/005-1Z1G (5VDC, 1 Pole, 8A, 3.2mm, Form C contact)

HF118F/012-1Z3T (12VDC, 1 Pole, 10A, 3.2mm, Form C contact)

HF118F/024-1Z3T (24VDC, 1 Pole, 10A, 3.2mm, Form C contact)

HF118F/024-1ZS1T (24VDC, 1 Pole, 8A, 3.2mm, Form C contact)

HF118F/024-1ZS3T (24VDC, 1 Pole, 10A, 3.2mm, Form C contact)

Description

Features:

► 10A switching capability
► 5kV dielectric strength (between coil and contacts)
► Low height: 12.5 mm
► Creepage distance >8mm
► Meeting VDE 0700, 0631 reinforce insulation
► Product in accordance to IEC 60335-1 available
► 1 pole configurations available
► UL insulation system: Class F
► Sockets available
► Plastic sealed and flux proofed types available
► Environmental friendly product (RoHS compliant)
► Outline Dimensions: (28.5 x 10.1 x 12.5) mm
