NHR0223 - HX711 Load Cell Module

HX711 Load Cell Module 24-Bit ADC for Weigh Scales

Availability: In Stock

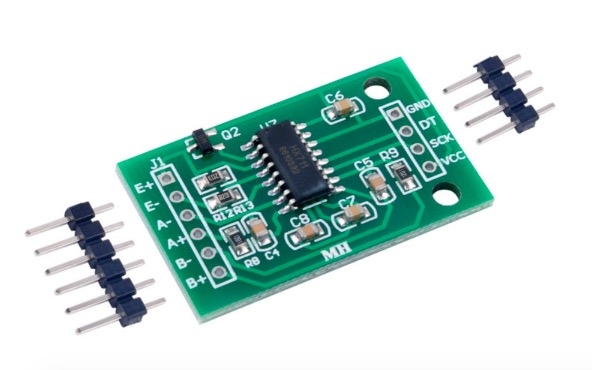

HX711 Load Cell Module

24-Bit Analog-to-Digital Converter (ADC) for Weigh Scales

• Two selectable differential input channels
• Simple digital control and serial interface:
pin-driven controls, no programming needed
• Selectable 10SPS or 80SPS output data rate
• Simultaneous 50 and 60Hz supply rejection
• Current consumption including on-chip analog
power supply regulator:
normal operation < 1.5mA, power down < 1uA
• Operation supply voltage range: 2.6 ~ 5.5V
• Operation temperature range: -40 ~ +85℃
