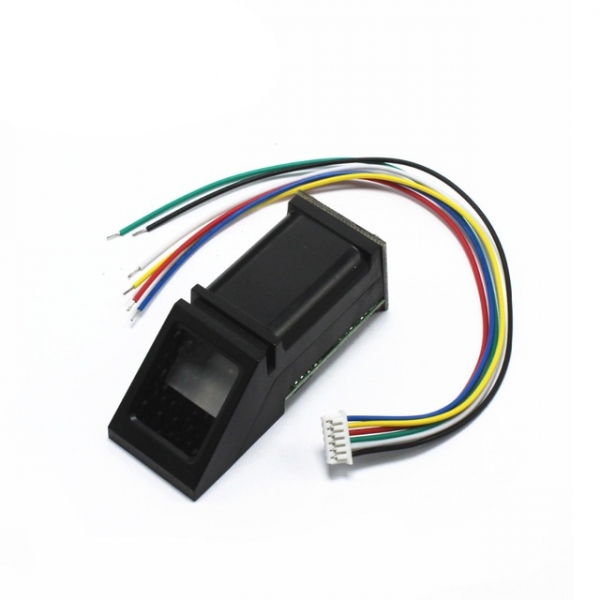

NHR0214-73A - Adafruit FPM10A 1000 point Optical Fingerprint reader Sensor Module

Secure your project with biometrics with 1000 point identification- this all-in-one optical fingerprint sensor will make adding fingerprint detection and verification super simple. These modules are typically used in safes - there's a high powered DSP chip that does the image rendering, calculation, feature-finding and searching. Connect to any microcontroller or system with TTL serial, and send packets of data to take photos, detect prints, hash and search. You can also enroll new fingers directly - up to 162 finger prints can be stored in the onboard FLASH memory.

Availability: In Stock

FPM10A Optical Fingerprint reader Sensor Module

Supply voltage: DC 3.6 ~ 6.0V / 3.3V Supplying

Supply Current: Current: <120mA

Peak current: <140mA

Fingerprint image time: <1.0 seconds

Window size: 14 ╳ 18 mm

Matching mode: Match mode (1:1)

Search mode (1: N)

Signature File: 256 bytes

Template files: 512 bytes

Storage capacity: 1,000

Safety level: five (from low to high: 1,2,3,4,5)

False Accept Rate (FAR): <0.001% (security level 3)

False Reject Rate (FRR): <1.0% (security level 3)

Search time: <1.0 seconds (1:500, the mean)

PC Interface: UART (TTL logic level) or USB2.0 / USB1.1

Communication baud rate (UART): (9600 ╳ N) bps where N = 1 ~ 12 (default value N = 6, ie 57600bps)

Working environment:

Temperature: -20 ℃ - +50 ℃

Relative Humidity: 40% RH-85% RH (non-condensing)

Storage environment:

Temperature: -40 ℃ - +85 ℃

Relative humidity: <85% H (non-condensing)

Dimensions (L ╳ W ╳ H): 56 ╳ 20 ╳ 21.5mm
