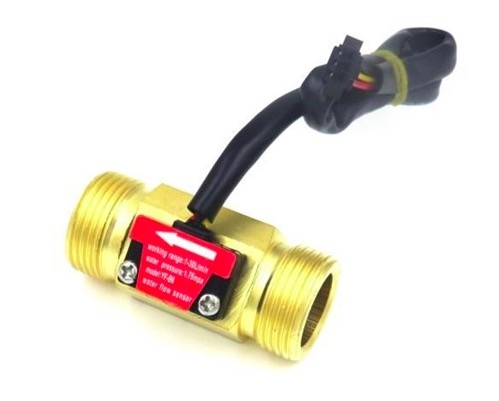

NHR0214-70A - FLOW SENSOR 3/4 BRASS MATERIAL

FLOW SENSOR 3/4 BRASS MATERIAL 50mm cable,YF-B5

Availability: In Stock

Availability: In Stock

Availability: Unavailable

FLOW SENSOR 3/4 BRASS MATERIAL 50mm cable,YF-B5

  • Thread size :DN20, G3/4” (BSP) , male.
  • Flow hole: 14mm (diameter)
  • Voltage: DC4.5-18v
  • Body Material: brass
  • Flow rate : 2~45L/min
  • Flow Pulse:  F(Hz)=8.1*Q – 3(+/-10%)    Q=L/min
  • Max. Working Current : 10mA (DC5 V)
  • Min. Working Voltage: DC 4.5V
  • Working Voltage: DC 4.5V~18V
  • Load Capacity: =10 mA (DC 5 V)
  • Insulation resistance: over 100M Ohm
  • Max pressure: 1.75mpa
  • Suitable for liquid : water.(less than 60 cel. degree)
