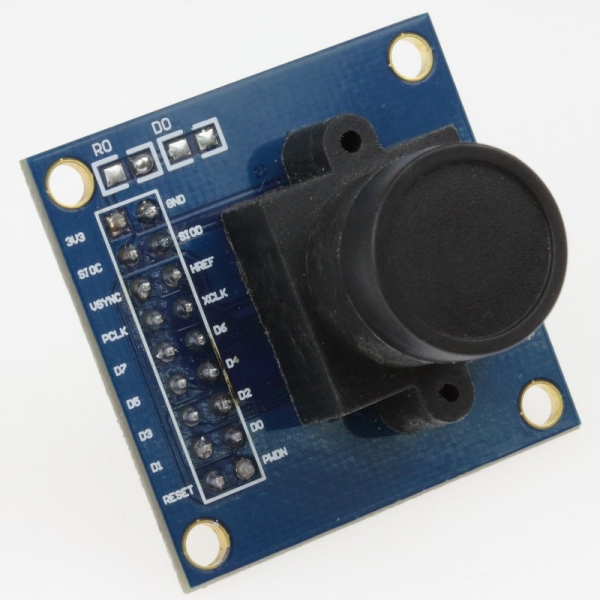

NHR0113 - OV7670 640 x 480 VGA CMOS Camera Module

OV7670 640 x 480 VGA CMOS Camera Module

Availability: In Stock

OV7670 640 x 480 VGA CMOS Camera Module

  •   Photosensitive array: 640X480
  •   IO Voltage: 2.5V to 3.0V (internal LDO for nuclear power 1.8V)
  •   Power operation: 60mW/15fpsVGAYUV
  •   Sleep: <20uA
  •   Temperature Operating: -30 to 70 degree
  •   Stable: 0  to 50 degree
  •   Output Formats :(8) YUV/YCbCr4: 2:2 RGB565/555/444 GRB4: 2:2 Raw RGB Data
  •   Optical size: 1/6 "
  •   FOV: 25 degree
  •   Maximum Zhen rate: 30fps VGA
  •   Sensitivity: 1.3V / (Lux-sec)
  •   SNR: 46 dB
  •   Dynamic range: 52 dB
  •   View Mode: Progressive
  •   Electronic Exposure: 1 line to 510 line
  •   Pixel Size: 3.6um x 3.6um
  •   Dark current: 12 mV / s at 60 degree
