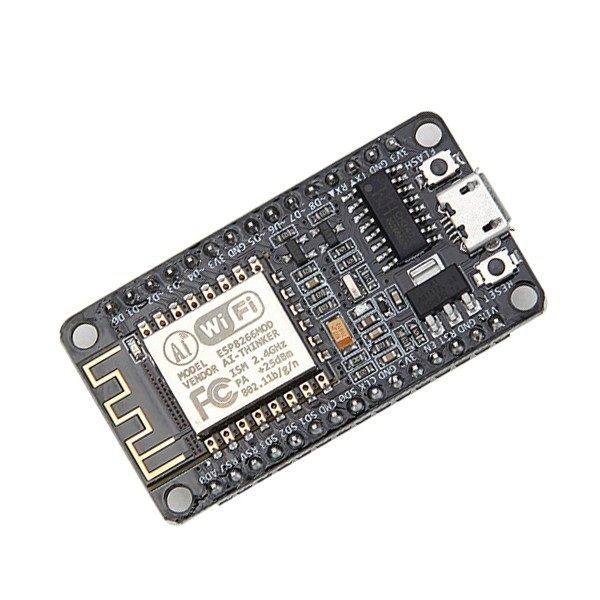

NHR0126 - NodeMcu Lua ESP8266 ESP-12E WIFI Development Board

NodeMcu Lua ESP8266 ESP-12E WIFI Development Board

Availability: In Stock

NodeMcu Lua ESP8266 ESP-12E WIFI Development Board

  • Wireless 802.11 b / g / n standard
  • Support STA / AP / STA + AP three operating modes
  • Built-in TCP / IP protocol stack to support multiple TCP Client connections (5 MAX)
  • D0 ~ D8, SD1 ~ SD3: used as GPIO, PWM, IIC, etc., port driver capability 15mA
  • AD0: 1 channel ADC
  • Power input: 4.5V ~ 9V (10VMAX), USB-powered
  • Current: continuous transmission: ≈70mA (200mA MAX), Standby: <200uA
  • Transfer rate: 110-460800bps
  • Support UART / GPIO data communication interface
  • Remote firmware upgrade (OTA)
  • Support Smart Link Smart Networking
  • Working temperature: -40 ℃ ~ + 125 ℃
