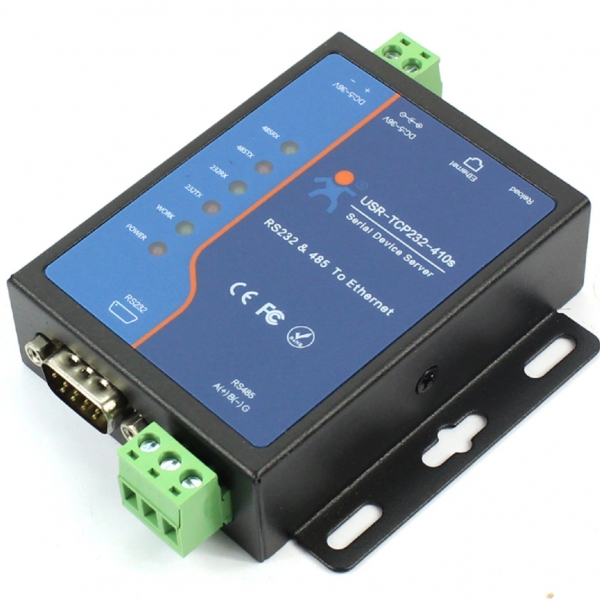

NHS2425 USR-TCP232-410S 232/485 to Ethernet Converter

Serial Device Server Introduction

This is a serial rs485&rs232 to Ethernet server, used for data transparent transmission.USR-TCP232-410S is a dual serial server, which supports rs232 & rs485 working at the same time. It is based on Cortex-M4 solution And the internal of the serial server integrates TCP/IP protocol stack.Besides,USR-TCP232-410S has the function of terminal power supply.

Serial Device Server Feature

· Multiple indicator lights for convenient debugging

· Power-line terminal for industrial application

· ARM kernel and TCP/IP protocol stack

· Auto-MDI/MDIX,RJ45 port with 10/100Mbps

· TCP Server,TCP Client,UDP,UDP Server and HTTPD Client work mode

· Two ports can work independently at the same time

· Support virtual serial port and provide corresponding software USR-VCOM

· Serial baud rate from 600bps to 230.4K bps;Check bit of None,Odd,Even,Mark and Space

· DNS and DHCP supported

· Provide PC TCP/IP SOCKET programming example,VB,C++,Delphi,Android,IOS

· Built-in webpage;also can customize webpage for users

· Reload button,one key to restore default settings

· RJ45 with Link/Data indicator light,built-in isolation transformer and 2 KV electromagnetic isolation

· The global unique MAC address bought from IEEE,user can define MAC address

· Support upgrade firmware via network

· Support keepalive,rapidly detect dead links

· Support account and password,can be used to page login and network settings

· Support one channel Websocket,realize bidirectional transparent transmisison bewteen webpage and serial 0

· Support Modbus RTU to Modbus TCP

· Support UDP broadcast function,send and receive data from all ip in the network

Serial Device Server Application Field

· Industrial data transmission, industrial automation

· security and protection monitoring, public security

· Smart home, power control, environmental monitoring, intelligent agriculture

· Door check on work attendance system,POS system, rice selling system

· Building automation system, power monitoring, self-service banking system, telecom machine room monitoring
