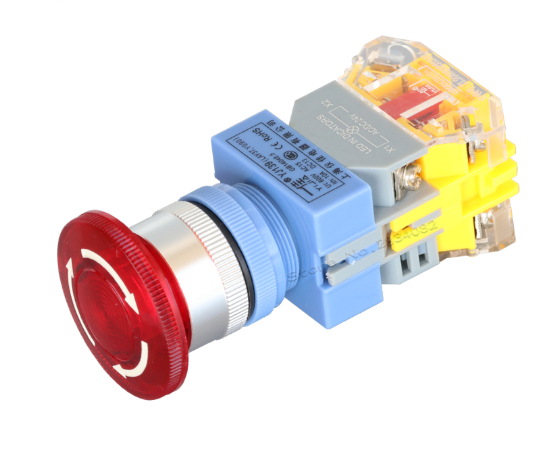

NHS1778 - LED Emergency stop Button Switch

Availability: In Stock

Product General

LAY37 series are using high quality inflaming retarding materials, the switch unit is separated in dependently and the insulating performance is very well.

Product meets standards of IEC 60947-5-1, GB14048.5

The switch unit is slow-break and self-cleaning, it uses modular combination mode.

The protective degree is IP40


Product Specification

Model: LAY37-11ZSD

Mounting hole size: 22mm

Diameter of the mushroom cap: 40mm

Material of contact type:Silver alloy

Material of shell: Flame retarding material

Contact Type: 1NO(Normally Open)1NC(Normally Close)

Action Type:  Maintained/latching/self-locking(ON-OFF. when you press the button it will be working, then you press the button again, it will be stop working)

Electrical Life: 5000,000 operations minimums

Mechanical Life: 500,000 operations minimums
