NHS1496 - EZP2010 high-speed USB SPI Programmer

EZP2010 high-speed USB SPI Programmer + IC Test Clips socke Support 24 25 93 EEPROM 25 Flash BIOS Chip

Availability: In Stock

HS1496 EZP2010 high-speed USB SPI Programmer + IC Test Clips socke Support 24 25 93 EEPROM 25 Flash BIOS Chip

Function description, areas of application:

1. Appliance repair: suitable for household appliances maintenance industry flash color TV, DVD, computer motherboards, hard disk memory chips.
2. The product research and development: the company product research and development in the process of burning test chip.
3. The factory production: automatic offline copy function is particularly suited to factory mass burn memory chips.
Product features:
1. USB 2.0 interface, speed up to 12 MBPS.
2. Read and write speed is super fast, read EN25T80 as long as three seconds, write EN25T80 only in 9 seconds, the fastest is currently on the market the BIOS chip programmer.
3. The automatic identification of chip.
4. Automatically detect whether chip.
5. Automatic selection chip power supply voltage.
6. Automatic offline copy.
7. Support the PC software and programming device firmware upgrade.
8. To fully support 25 FLASH block, block 24 EEPROM, 25 EEPROM memory chips, block 93 EEPROM, etc.
9. Appearance is compact, easy to carry, and ordinary card about the size.

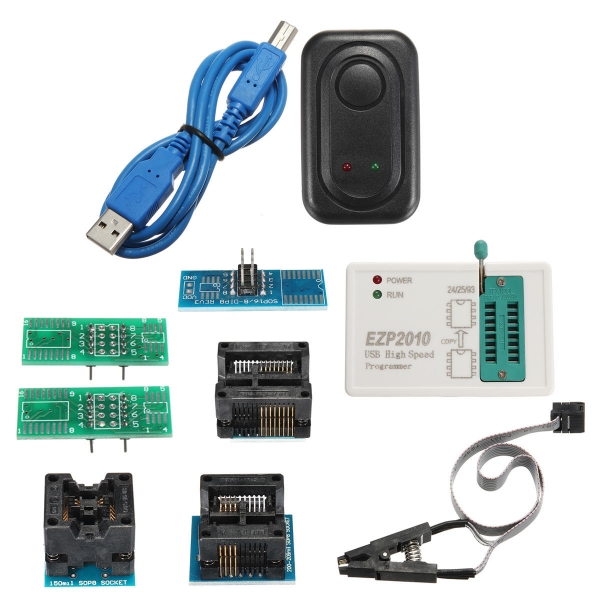

Product list:

1. Programmer                                 1PCS

2. USB cable                                   1PCS

3. CD                                               1PCS

4. 5V power for off-line chip copy    1PCS

5. Simple socket for SMD chips       2PCS







Support the chip list(Quick query:Ctrl+F)



*******************25 SPI FLASH*************************

AMIC:A25L05P,A25L512,A25L010,A25L10P,A25L020,A25L20P,A25L040,A25L40P,A25L080, A25L80P, A25L016, A25L16P, A25L032
ATMEL:AT25F512,AT25F512A,AT25F512B,AT25F1024,AT25F1024A,AT25FS010,

AT25DF021, AT25F2048, AT25DF041A, AT25F4096, AT25FS040, AT26F004,

AT26DF081A, AT25DF161, AT26DF161, AT26DF161A, AT25DF321, AT25DF321A,

AT26DF321, AT25DF641
EON:EN25F05, EN25LF05, EN25P05, EN25D10, EN25F10, EN25LF10, EN25P10,

EN25D20, EN25F20, EN25LF20, EN25D40,EN25F40,EN25LF40,EN25D80,EN25F80,

EN25Q80,EN25T80, EN25B16, EN25B16T, EN25D16, EN25F16,EN25Q16,EN25T16,

EN25B32,EN25B32T, EN25F32, EN25P32, EN25Q32, EN25B64, EN25B64T, EN25F64,EN25P64,EN25Q64,EN25F128,EN25Q128
ES:ES25P10, ES25P20, ES25M40, ES25M40A,ES25P40,ES25M80,ES25M80A,ES25P80,

ES25M16, ES25M16A, ES25P16, ES25P32
ESMT:F25L004A,F25L04UA,F25L008A,F25L08PA,F25L016A,F25L16PA,F25L32PA,F25L32QA
MXIC:MX25L512,MX25V512,MX25L1005,MX25L2005,MX25L4005A,MX25V4005,MX25L8005, MX25V8005, MX25L1605D,MX25L1635D,MX25L3205D,MX25L3225D,MX25L3235D,MX25L3237D, MX25L6405D, MX25L12805D
NEXFLASH:NX25P10, NX25P20, NX25P40, NX25P80, NX25P16, NX25P32
PMC:PM25LV512A, PM25LV010A, PM25LV020, PM25LV040, PM25LV080B,PM25LV016B
SAIFUN:SA25F005, SA25F010, SA25F020,SA25F040,SA25F080, SA25F160,SA25F320
SPANSION:S25FL004A,S25FL008A,S25FL016A,S25FL032A,S25FL064A,S25FL128A,S25FL128P
SST:SST25VF512, SST25VF512A, SST25VF010, SST25VF010A,SST25VF020,SST25VF020A, SST25VF040, SST25VF040A, SST25VF040B, SST25VF080B, SST25VF016B,SST25VF032B, SST25VF064C
ST:M25P05A, M25P10A, M25PE10,M25P20,M25PE20, M25P40, M25PE40, M25P80,M25PE80, M25PX80, M25P16, M25PE16,M25PX16,M25P32,M25PX32, M25P64, M25PX64, M25P128
WINBOND:W25P10, W25X10,W25X10A,W25X10AL, W25X10L, W25P20,W25X20,W25X20A,W25X20AL, W25X20L, W25P40, W25X40,W25X40A, W25X40AL, W25X40L,W25P80,W25X80,W25X80A, W25X80AL, W25X80L, W25P16,W25X16, W25P32, W25X32, W25X64,W25Q64BV,W25Q128BV

MSHINE:MS25X80,MS25X40,MS25X64,MS25X32,MS25X16,MS25X128,MS25X10,MS25X05,MS25X20

GIGADEVICE:GD25T80,GD25Q80,GD25Q32,GD25Q64,GD25Q128,GD25Q512,GD25Q16,GD25Q20,

GD25Q10,GD25F80,GD25F40,GD25D80,GD25D40



***********************24 EEPROM*************************

ATMEL:AT24C01, AT24C01A, AT24C01B, AT24C02, AT24C02A, AT24C02B, AT24C04, AT24C04A, AT24C04B, AT24C08, AT24C08A, AT24C08B, AT24C16, AT24C16A, AT24C16B, AT24C32, AT24C32A, AT24C32B, AT24C64, AT24C64A, AT24C64B, AT24C128, AT24C128A, AT24C128B, AT24C256, AT24C256A, AT24C256B, AT24C512, AT24C512A, AT24C512B, AT24C1024, AT24C1024A, AT24C1024B

CATALYST:CAT24C01, CAT24WC01,CAT24C02,CAT24WC02,CAT24C04, CAT24WC04,CAT24C08, CAT24WC08, CAT24C16, CAT24WC16, CAT24C32, CAT24WC32, CAT24C64, CAT24WC64,CAT24C128, CAT24WC128, CAT24C256, CAT24WC256, CAT24C512, CAT24WC512,CAT24C1024, CAT24WC1024

COMMON:24C00 3V, 24C00 5V, 24C01 3V, 24C01 5V, 24C02 3V, 24C02 5V,24C04 3V,24C04 5V, 24C08 3V, 24C08 5V, 24C16 3V, 24C16 5V, 24C32 3V, 24C32 5V, 24C64 3V,24C64 5V, 24C128 3V, 24C128 5V, 24C256 3V, 24C256 5V, 24C512 3V, 24C512 5V, 24C1024 3V,24C1024 5V

FAIRCHILD:FM24C01L, FM24C02L, FM24C03L, FM24C04L, FM24C05L, FM24C08L, FM24C09L, FM24C16L, FM24C17L, FM24C32L, FM24C64L, FM24C128L, FM24C256L, FM24C512L, FM24C1024L

HOLTEK:HT24C01, HT24LC01, HT24C02, HT24LC02, HT24C04, HT24LC04,HT24C08,HT24LC08, HT24C16, HT24LC16, HT24C32, HT24LC32, HT24C64, HT24LC64, HT24C128, HT24LC128, HT24C256, HT24LC256, HT24C512, HT24C1024

ISSI:IS24C01, IS24C02, IS24C04, IS24C08, IS24C16, IS24C32, IS24C64, IS24C128, IS24C256, IS24C512, IS24C1024

MICROCHIP:24AA00, 24C00, 24LC00, 24AA01, 24AA014, 24C01C, 24LC014, 24LC01B, 24AA02,24LC02B,24AA024,24AA025,24AA04,24C02C, 24LC024,24LC025,24LC04B,24AA08,

24LC08B, 24AA16, 24LC16B, 24AA32, 24LC32, 24AA64,24FC64,24LC64, 24AA128,24FC128, 24LC128, 24AA256, 24FC256, 24LC256, 24AA512, 24FC512,24LC512, 24AA1024

NSC:NSC24C02, NSC24C02L, NSC24C64

RAMTRON:FM24C04A, FM24CL04, FM24C16A, FM24CL16, FM24C64, FM24CL64, FM24C256, FM24CL256, FM24C512

ROHM:BR24C01, BR24L01, BR24C02, BR24L02, BR24C04, BR24L04, BR24C08, BR24L08, BR24C16, BR24L16, BR24C32, BR24L32, BR24C64, BR24L64

ST:ST24C01, ST24C02, ST24C04, ST24C08, ST24C16, ST24C32, ST24C64

XICOR:X24C01, X24C02, X24C04, X24C08, X24C16



***********************93 EEPROM*************************

AKM:AK93C45AV, AK93C55AV, AK93C65AV, AK93C75AV

ATC:ATC93C46, ATC93LC46(16bit), ATC93LC46(16bit)-SOP8, ATC93LC46(8bit),ATC93LC46(8bit)-SOP8, ATC93C56, ATC93LC56(16bit), ATC93LC56(16bit)-SOP8, ATC93LC56(8bit), ATC93LC56(8bit)-SOP8, ATC93C66, ATC93LC66(16bit), ATC93LC66(16bit)-SOP8, ATC93LC66(8bit), ATC93LC66(8bit)-SOP8

ATMEL:AT93C46(16bit), AT93C46(16bit)-SOP8, AT93C46(8bit), AT93C46(8bit)-SOP8, AT93C46A, AT93C56(16bit), AT93C56(16bit)-SOP8, AT93C56(8bit), AT93C56(8bit)-SOP8, AT93C57(16bit), AT93C57(16bit)-SOP8, AT93C57(8bit), AT93C57(8bit)-SOP8, AT93C66(16bit), AT93C66(16bit)-SOP8, AT93C66(8bit), AT93C66(8bit)-SOP8, AT93C86(16bit), AT93C86(16bit)-SOP8, AT93C86(8bit), AT93C86(8bit)-SOP8

CATALYST:CAT93C46(16bit), CAT93C46(8bit), CAT93C46A, CAT93C46I, CAT93C56(16bit), CAT93C56(8bit), CAT93C56A, CAT93C57(16bit), CAT93C57(16bit)-SOP8, CAT93C66(16bit), CAT93C66(8bit), CAT93C66A, CAT93C86(16bit), CAT93C86(8bit)
