Narinco- NHS1186 ER11 Chuck CNC 500W Spindle Motor with 52mm Clamps and Power Supply Speed Governor

‹ ›

Availability: In Stock

NHS1186 ER11 Chuck CNC 500W Spindle Motor with 52mm Clamps and Power Supply Speed Governor

Specification:

Dimension	130mm×100mm×50mm (LWH)
Input	AC110-220V±10% 50/60Hz
Spindle Motor	500w
Spindle Speed	3000-12000r/min
Motor Diameter	52mm
Motor Length	208mm
Operating Voltage (Output Voltage)	100V DC
Current	6A
Speed	Up to idle up to 15,000 rev / min
Torque	5000G/CM
Insulation Resistance	> 2 megohms
Dielectric Strength	400V
High precision spindle runout 0.01-0.03

Chuck size:

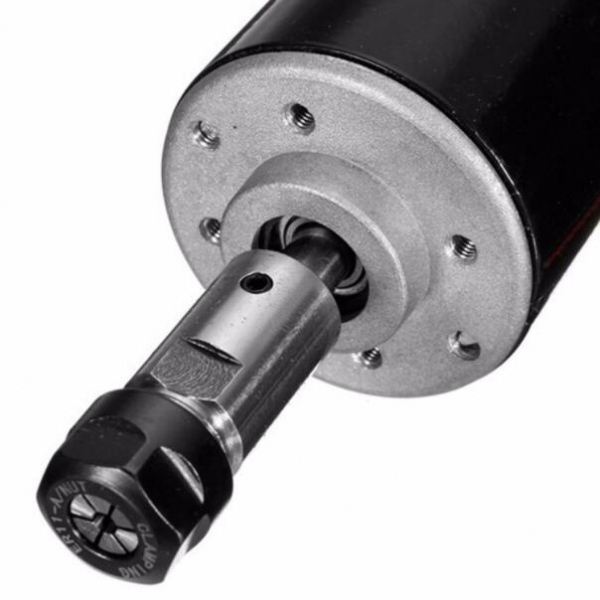

Style: ER11
Chuck Size: 1/8"

Material: High Grade 45 Carbon Steel

Total height: 18mm

Outer diameter(Max.): 11.5mm

Gripping Range: 3mm

Small diameter: 7.8mm

Fits metric shank size(s): 3mm metric shank

Nut Size:

Inner Diameter: 8.7mm

Height: 13mm

Hex Diameter: 17mm

Outer Diameter:19mm

Package Included:

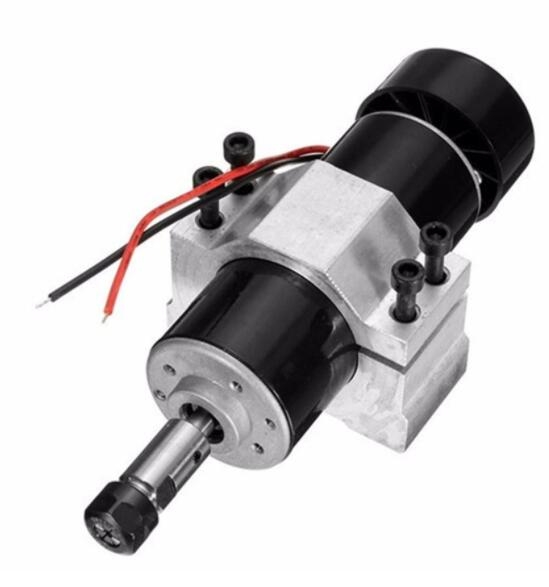

1 x 500W Spindle Motor

1 x Power Supply

1 x 52MM Mount Bracket

1 X ER11 Collect

4 x Screws

Note:
the wire + and - could be connected in both position as you want but make sure the output and input voltage position to be correct.
