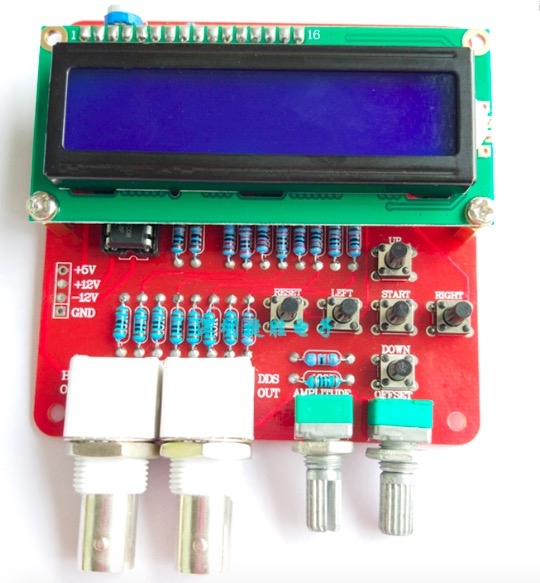

NHS0364 DDS Function Signal Generator Module DIY Kit Pulse Sine Wave
Description:
Delicated high speed (HS) signal output up to 8MHz
DDS signal with variable amplitude and offset
DDS signals: sine, square, saw, rev saw ,triangle, ECG and noise
2 x 16 LCD menu, intuitive 5 button keypad
Frequency adjusting steps: 1, 10, 1000, 10000MHz
Restoring last configuration after power up
Has two outputs-one for DDS signal and another for high speed aquare signal
Material: PCB + Electronic Components
Power Supply: +5V / +12V / -12V
Menu Displey: 2 x 16 LCD
HS Signal Frequency: 1, 2, 4, 8MHz
Red Board Size: 8 x 8cm / 3.15 x 3.15in (L * W)
Screen Size: 6.5 x 1.5cm / 2.6 x 0.6in (L * W)
