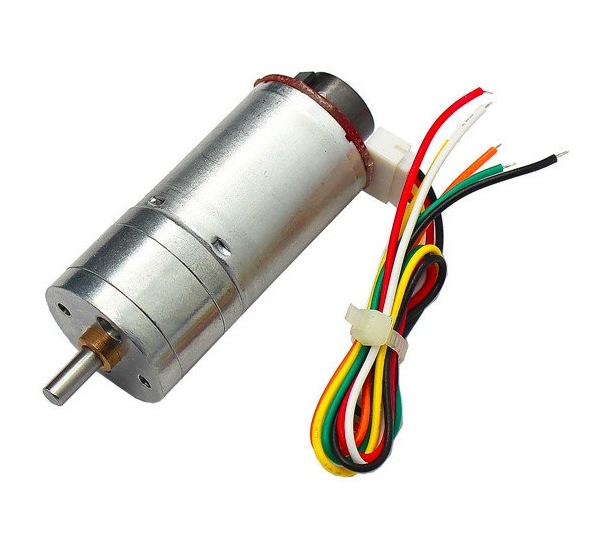

NHS1019 JGA25-370 DC Gear motor with Speed Encoder 6V 300RPM
JGA25-370 DC Gear motor with Speed Encoder 6V 300RPM
Specification:
Voltage: DC 6.0V
Speed: 100/210/300RPM
Shaft diameter: 4mm
Length: 12mm
Encoder motor end 11 signals
Terminal connection length 20cm
|
Rated Voltage |
DC 6V |
DC 6V |
DC 6V |
|
No-load Speed |
100RPM 0.13A |
210RPM 0.13A |
300RPM 0.1A |
|
Max Efficiency |
1.0kg.cm/80rpm/1.7W/0.5A |
2.0kg.cm/170rpm/2.0W/0.60A |
0.7kg.cm/245rpm/1.2W/0.4A |
|
Max Power |
3.0kg.cm/55rpm/2.8W/1.0A |
5.2kg.cm/110rpm/3.1W/1.10A |
1.8kg.cm/160rpm/2W/0.8A |
|
Stall Torque |
6.5kg.cm 3.0A |
10kg.cm 3.2A |
3.6kg.cm 2.7A |
|
Retarder Reduction Ratio |
1 : 75 |
1 :34 |
1 : 20 |
|
Hall Resolution |
11 x Ratio 74.83 = 823.1PPR |
Hall x Ratio 34.02 = 341.2PPR |
11 x Ratio 20.4 = 224.4PPR |
Outline Drawing:
Note:
Please note that the package includes one motor only.
100/210/300RPM is available.
