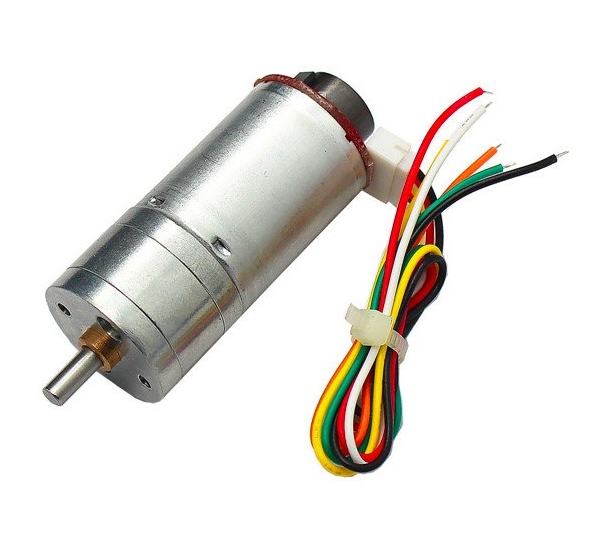

NHS1017 JGA25-370 DC Gear motor with Speed Encoder 6V 100RPM

Specification:
Voltage: DC 6.0V
Speed: 100/210/300RPM
Shaft diameter: 4mm
Length: 12mm
Encoder motor end 11 signals
Terminal connection length 20cm


Rated Voltage

DC 6V

DC 6V

DC 6V

No-load Speed

100RPM 0.13A

210RPM 0.13A

300RPM 0.1A

Max Efficiency

1.0kg.cm/80rpm/1.7W/0.5A

2.0kg.cm/170rpm/2.0W/0.60A

0.7kg.cm/245rpm/1.2W/0.4A

Max Power

3.0kg.cm/55rpm/2.8W/1.0A

5.2kg.cm/110rpm/3.1W/1.10A

1.8kg.cm/160rpm/2W/0.8A

Stall Torque

6.5kg.cm 3.0A

10kg.cm 3.2A

3.6kg.cm 2.7A

Retarder Reduction Ratio

1 : 75

1 :34

1 : 20

Hall Resolution

11 x Ratio 74.83 = 823.1PPR

Hall x Ratio 34.02 = 341.2PPR

11 x Ratio 20.4 = 224.4PPR



Outline Drawing:

6V 100/210/300RPM Encoder Motor

Note:
Please note that the package includes one motor only.
100/210/300RPM is available.

Package Included:
1 x Encoder Motor
